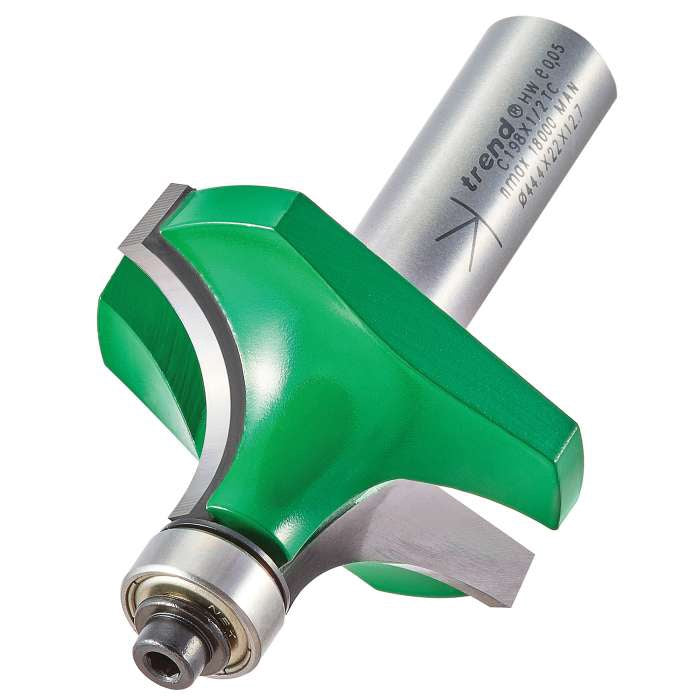

TREND C198X1/2TC BEARING GUIDED ROUND OVER OVOLO 16MM RADIUS
BEARING GUIDED ROUND OVER & OVOLO
Self-guiding cutters for rounding over edges do not require a side fence.
They are supplied with two bearings.

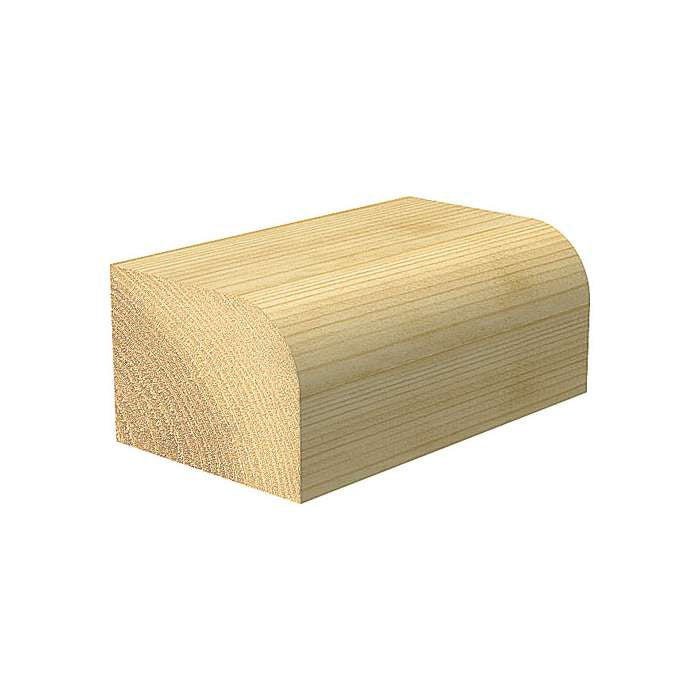

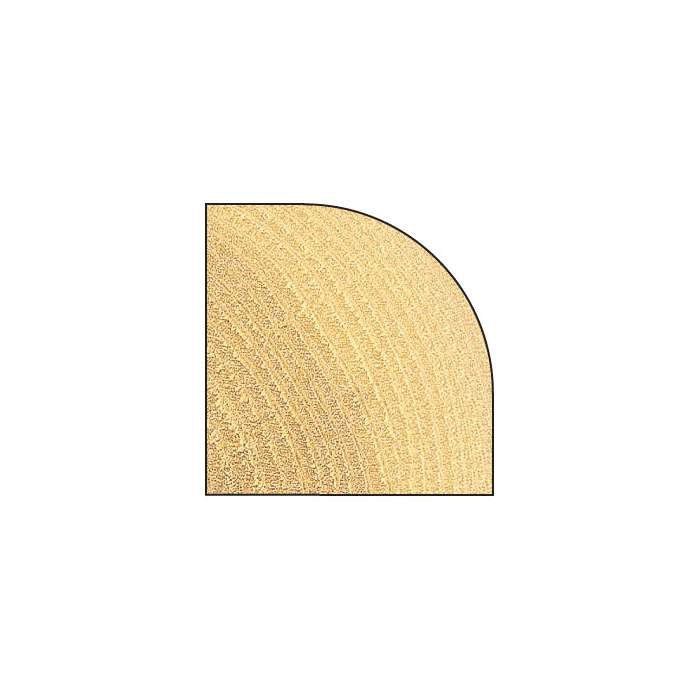

Use the larger bearing for a round-over.

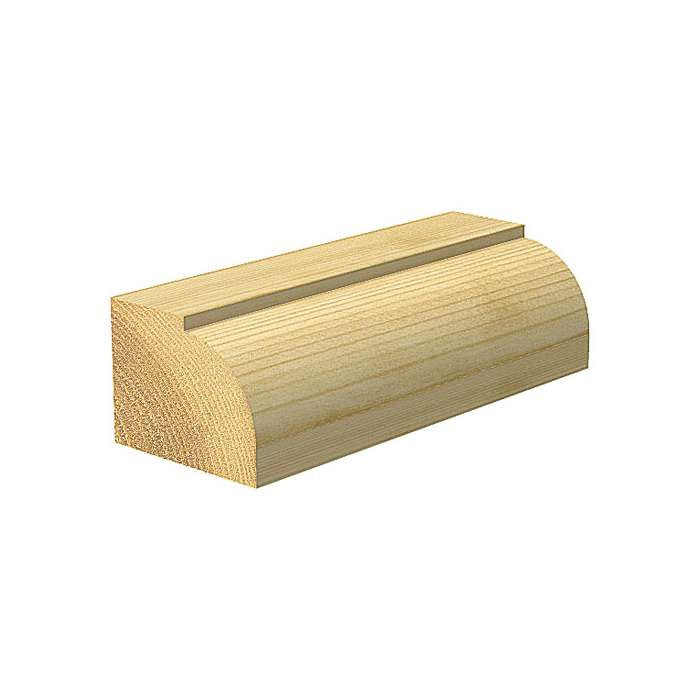

If the cutter is lowered, a top quirk can be produced.

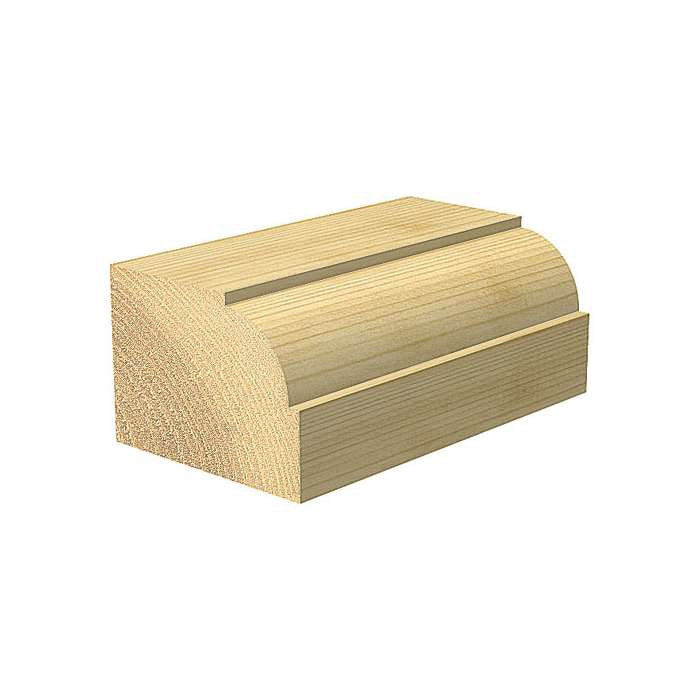

Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpce.

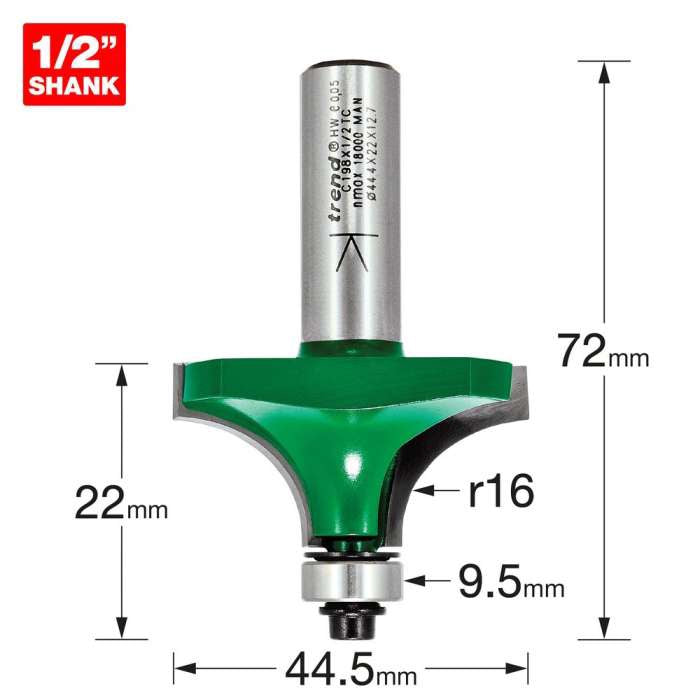

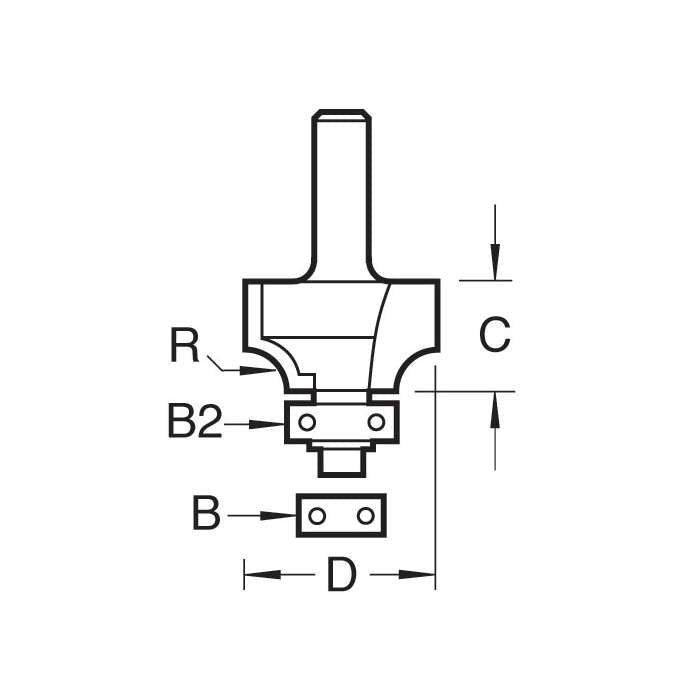

Specification-
D=44.5 mm
C=22 mm
B=9.5 mm
B2=12.7 mm
R=5/8 inch
R=16 mm
Shank Diameter=1/2 inch
