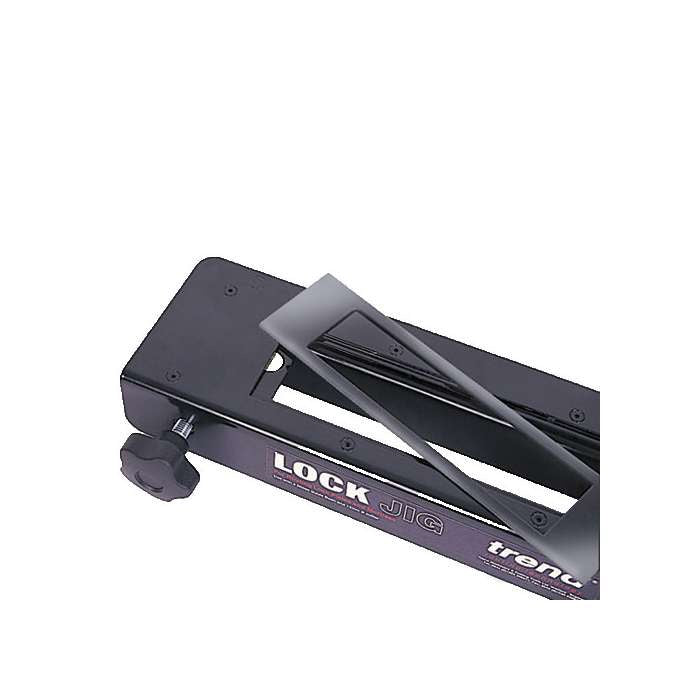

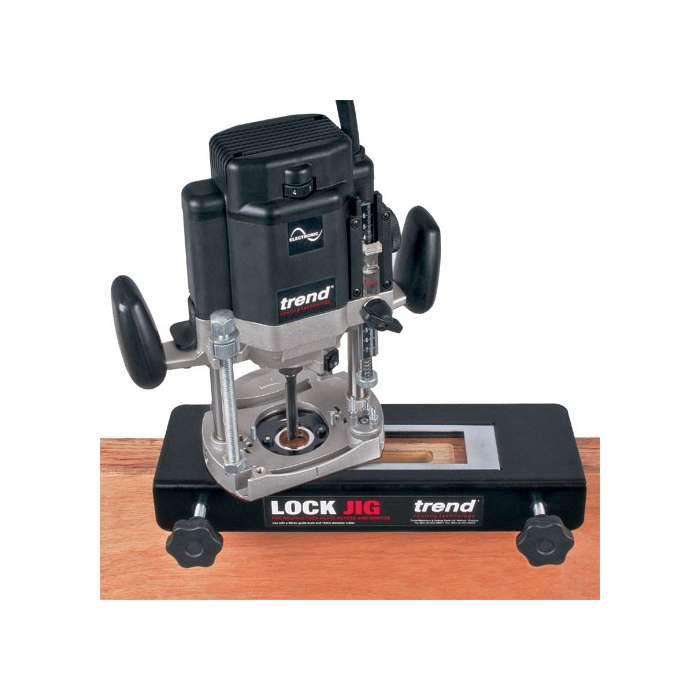

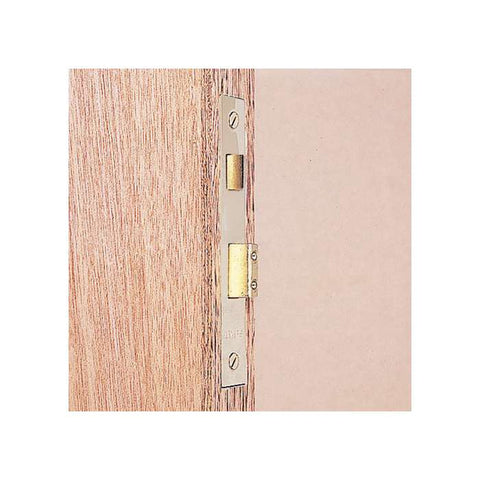

Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.
FEATURES
Suitable for DDA (Disabilty Discrimination Act) lock size
20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise

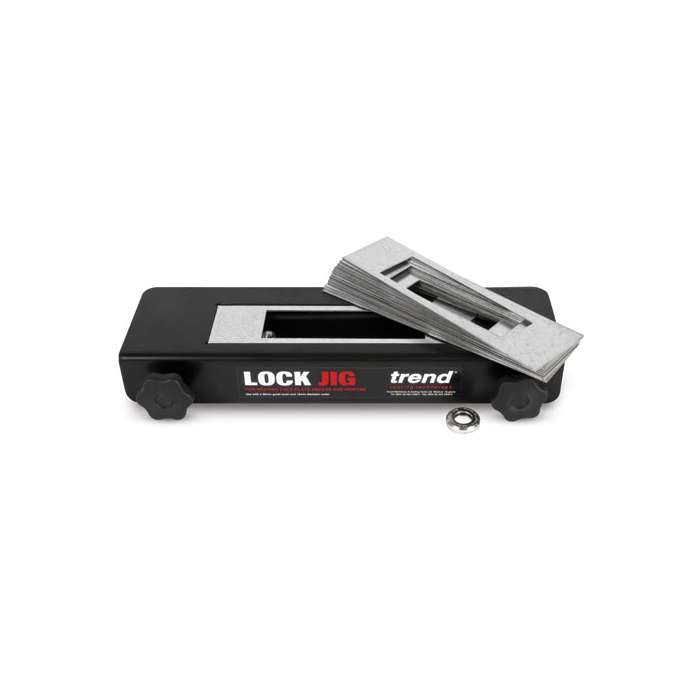

Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG)

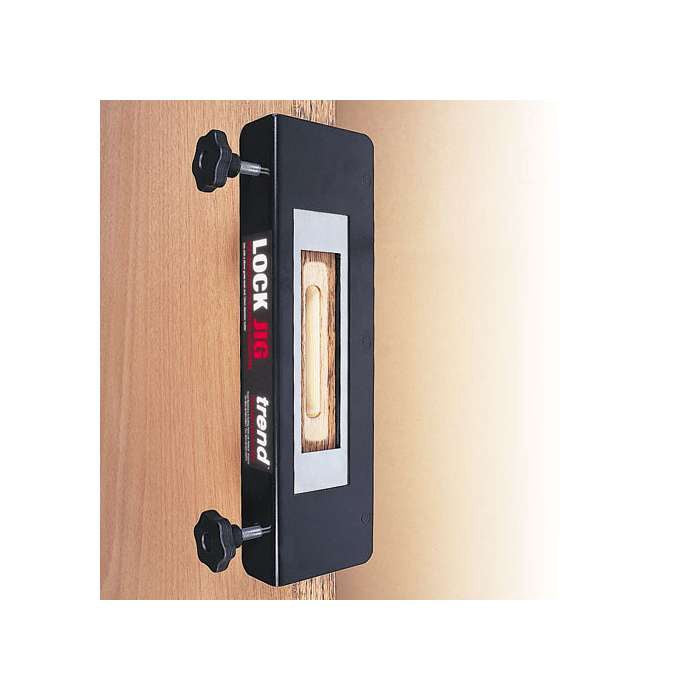

Suitable for doors 34mm to 58mm thick
An auger bit and drill is required to complete deep mortises

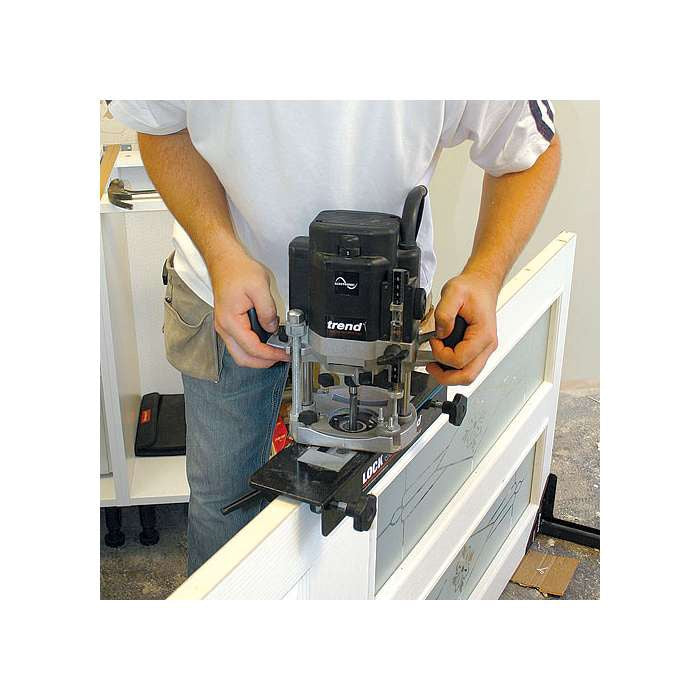

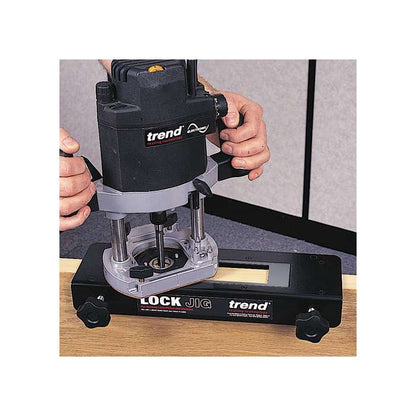

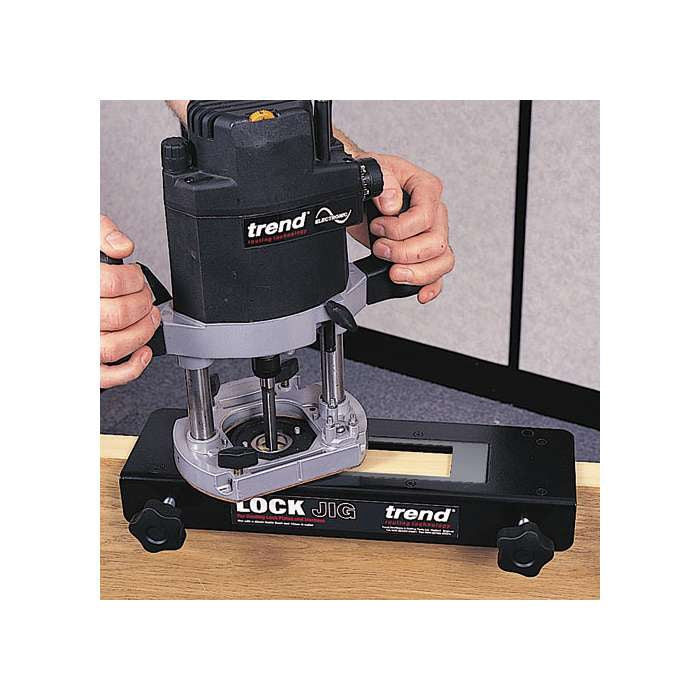

The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise
Suits DIN style locks
SPECIFICATION
Door thickness min.: 34 mm
Door thickness max.: 58 mm

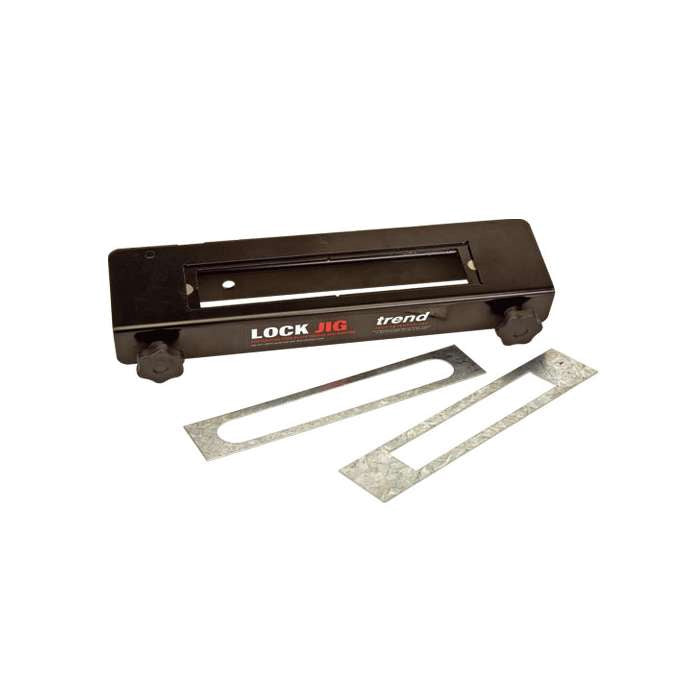

Includes templates for locks having the following face-plate dimensions:
Metric (D x OL): 20 x 235mm (RE)
Template: 1
Metric (D x OL): 24 x 235mm (RE)
Template: 2
Rounded ends (RE)

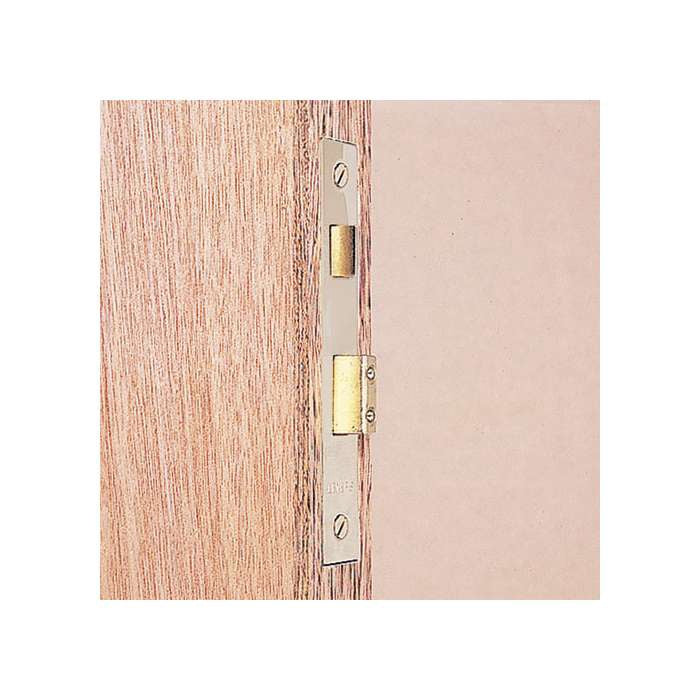

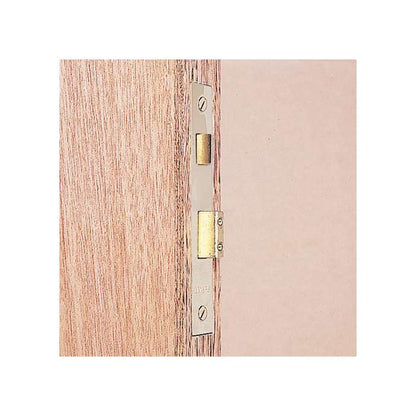

Mortise Lock Dimensions:
Metric (D x OL) Template: 17 x 170mm*
Template: A
*Mortise is actually 180mm to give 5mm clearance each end
