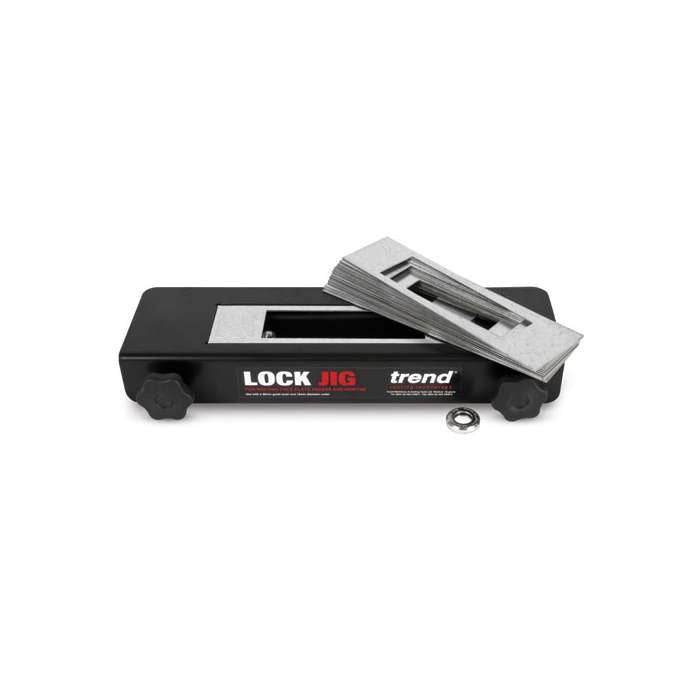

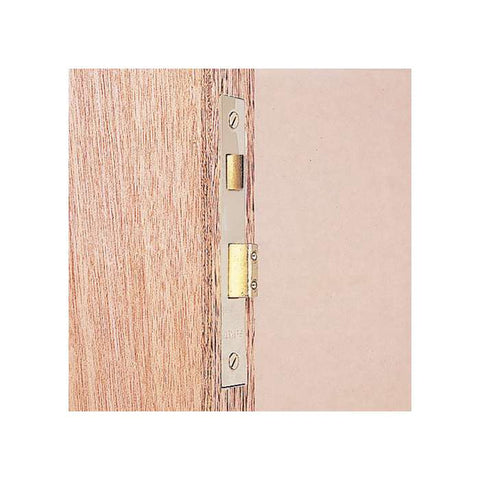

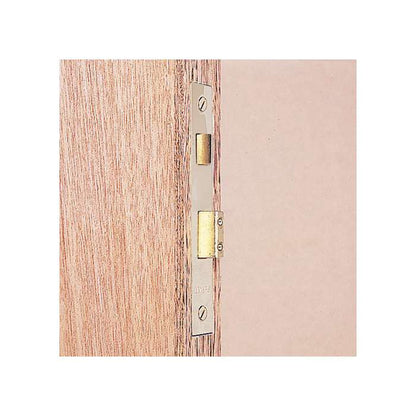

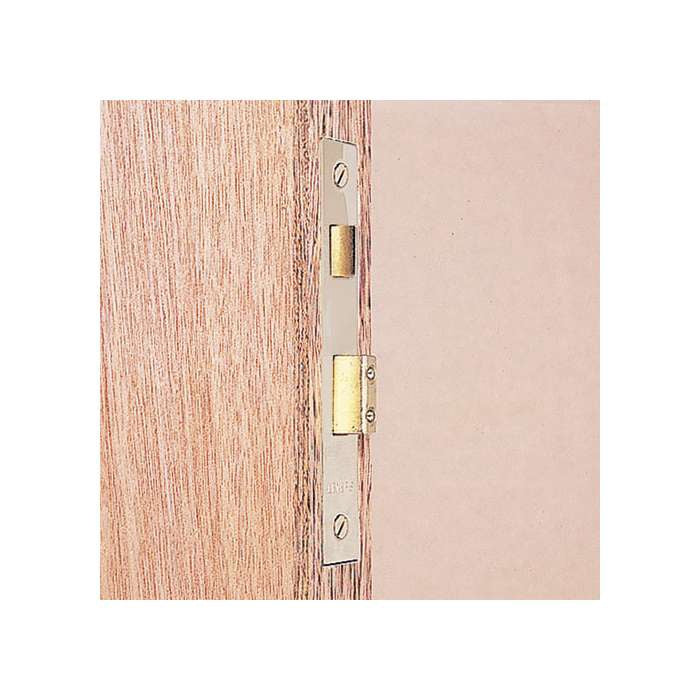

The Trend LOCK/JIG Lock Jig is a contractor jig with interchangeable templates for use with a plunge router to cut the mortise and face-plate recesses for popular door locks.
Features:

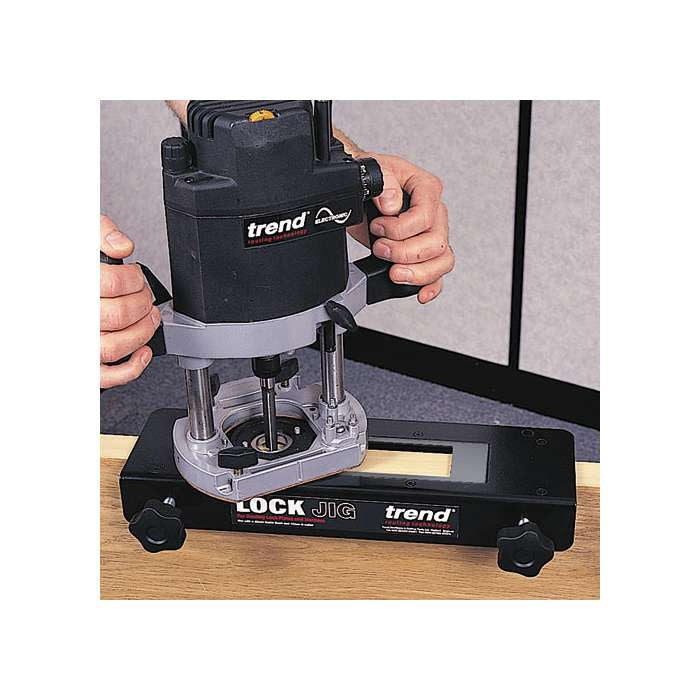

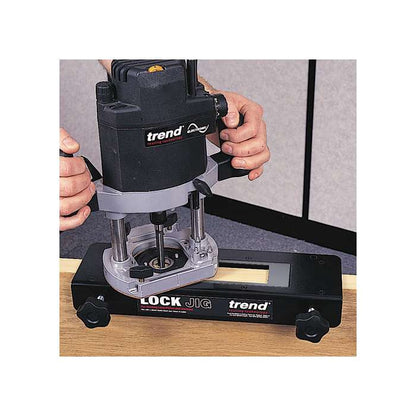

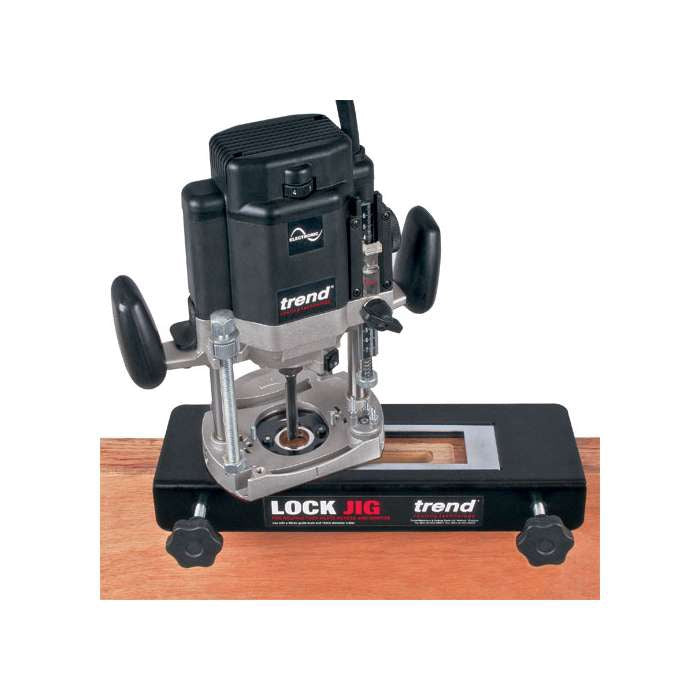

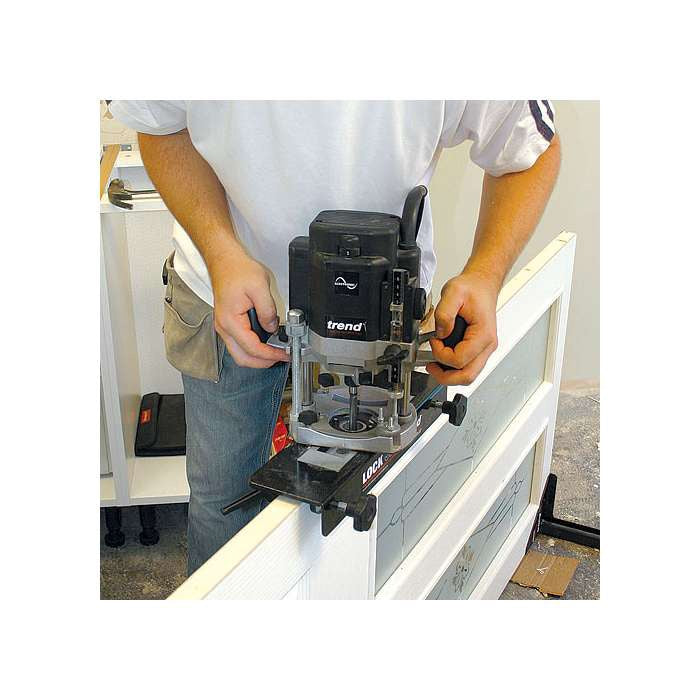

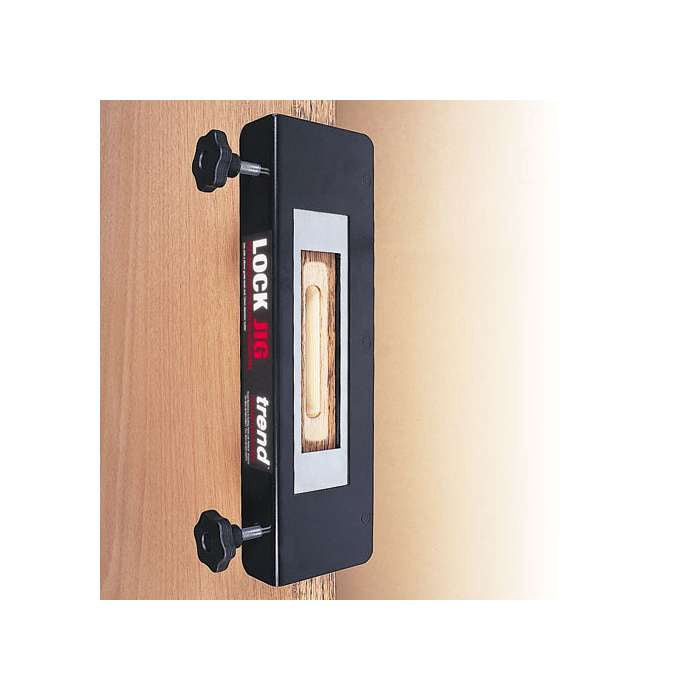

For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate. Deeper mortises can be achieved with a suitable size of auger bit. Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood. Steel plates & body. An auger bit and drill is required to complete deep mortises. The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
Comes With:

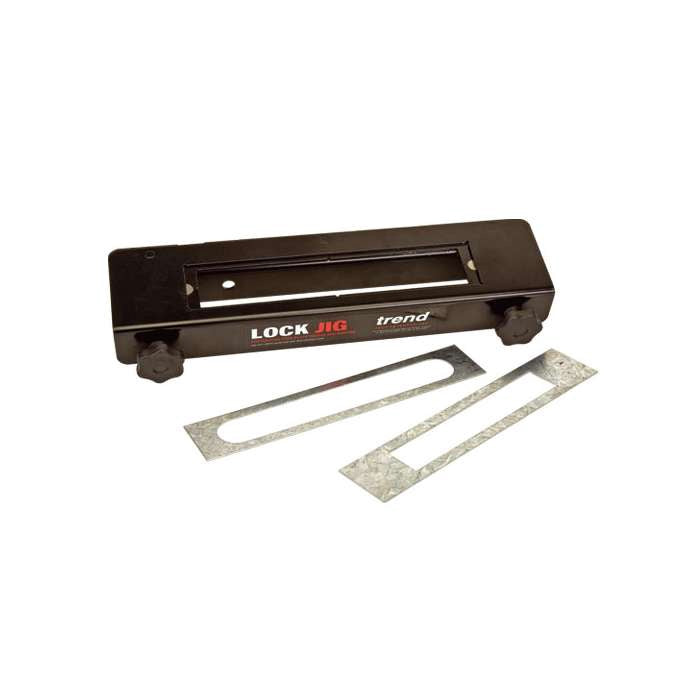

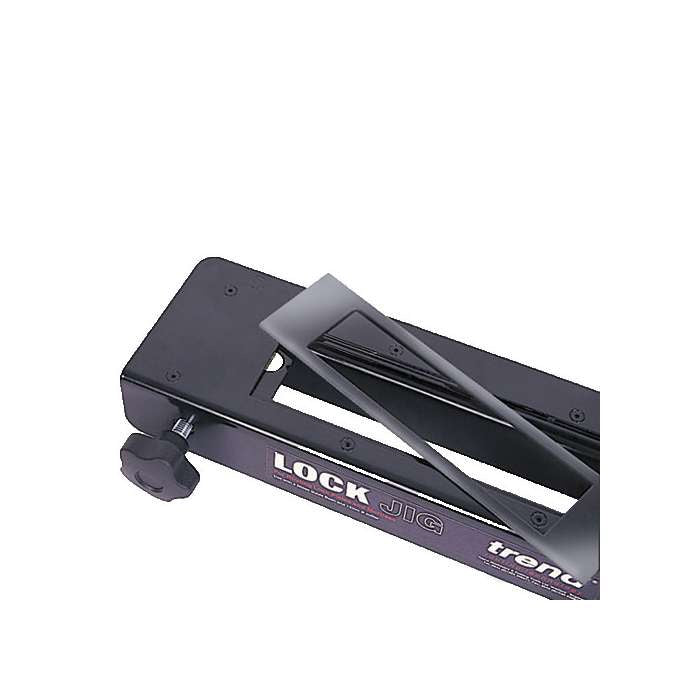

1 x Guide Bush Collar 12 x Face Plate Templates 4 x Mortise Templates
Product Specification:
Part no: LOCK/JIG Barcode: 5027654090596 Door thickness min.: 34 mm Door thickness max.: 58 mm Template outer size: 234.3 x 59.8 x1.5mm Metric (Imperial approx.) (D x OL): Template 22.2x156 mm (7/8"x 6 1/8"): 1 22.5x152.5 mm (7/8"x 6"): 2 25.4x121 mm (1"x 4 3/4"): 3 25.4x127.5 mm (1"x 5"): 4 25.4x133.5 mm (1"x 5 1/4"): 5 25.4x145 mm (1"x 5 3/4"): 6 25.4x153 mm (1"x 6"): 7 25.4x156.5 mm (1"x 6"): 8 25.4x165.5 mm (1"x 6 1/2"): 9 25.4x177 mm (1"x 7"): 10 25x57.5 mm (1"x 2 1/4"): 11 UPPER 26x56.5 mm (1"x 2 1/4"): 11 LOWER 25.6x162mm (1"x 6 3/8"): 12 Mortise Lock Dimensions: Imperial (Metric) (D x OL): Template 16x72 mm* (5/8" x 2 7/8"): A 16x107 mm* (5/8" x 4 1/4"): B 19x78 mm* (3/4" x 3 1/8"): C 19x109 mm* (3/4" x 4 1/4"): D
