Description:

Trend T1EPS 1/4" Electric Trim & Plunge Router Kit 240V/710W

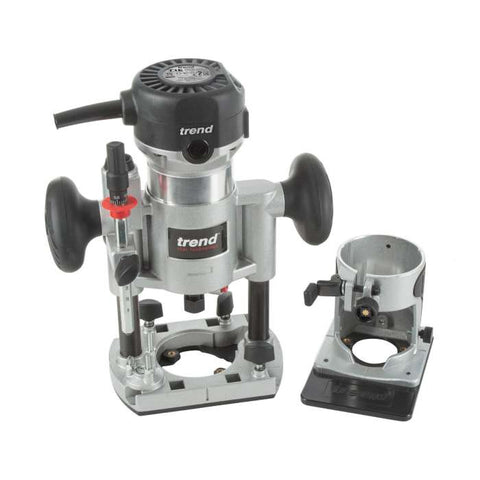

Trend T1EPS/X is a variable speed plunge router with a 710 W motor. It comes with two bases: a trim base for trimming laminates and veneers, and a plunge base for making mortises and other plunge cuts. The router has a soft-start feature to prevent kickback, and a variable speed control to allow you to match the speed of the router to the material you are cutting.

Features:

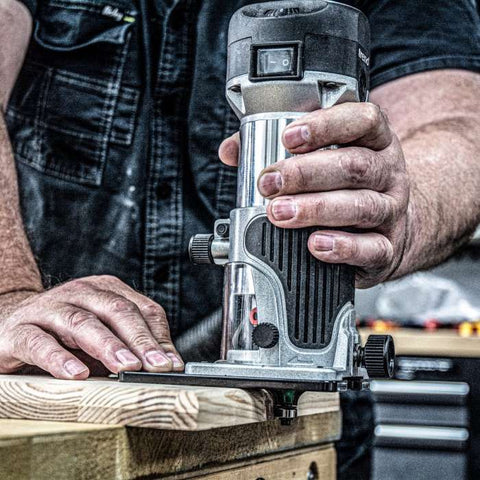

Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth

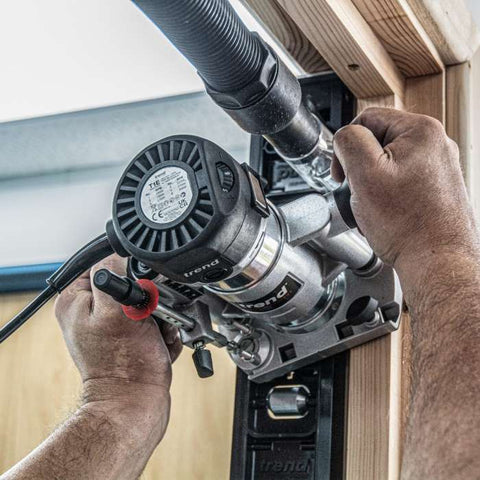

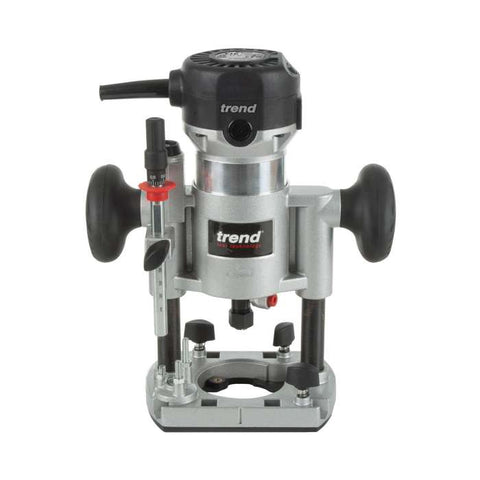

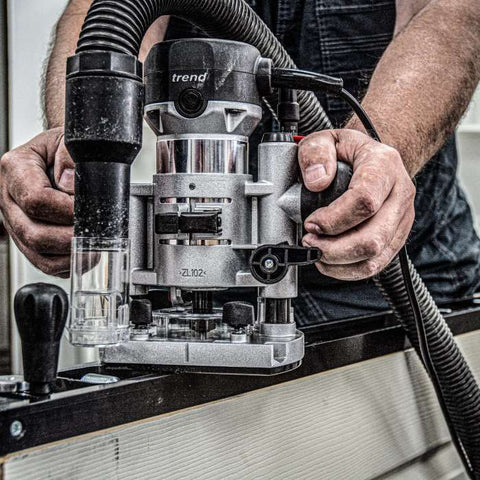

Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation
Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications
Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts

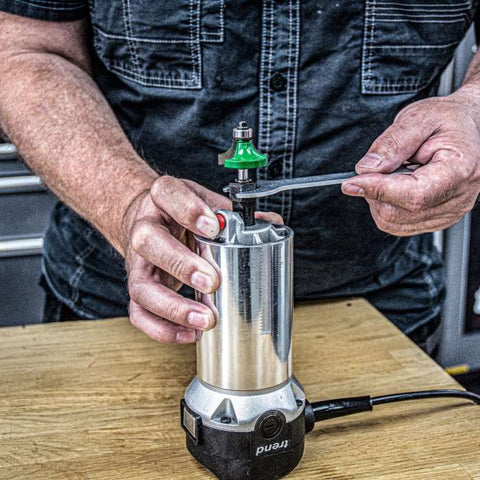

Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank

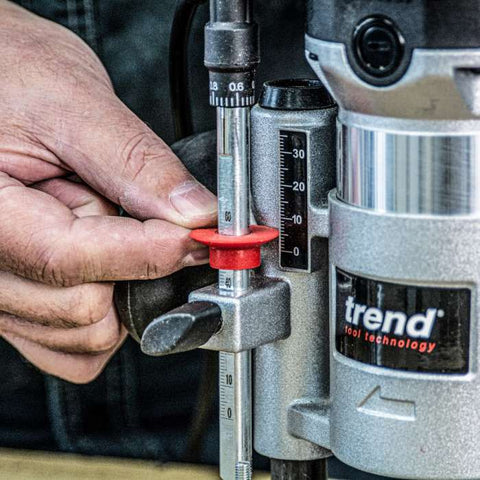

Fine Height Adjuster with an easy-to-read 0.2mm increment display for precision depth adjustments
Height Adjustable 3-Position Rotating Turret for fast, repeatable batch and stepped cutting
Compact Inclined Handles feature a soft grip moulding for comfortable operation

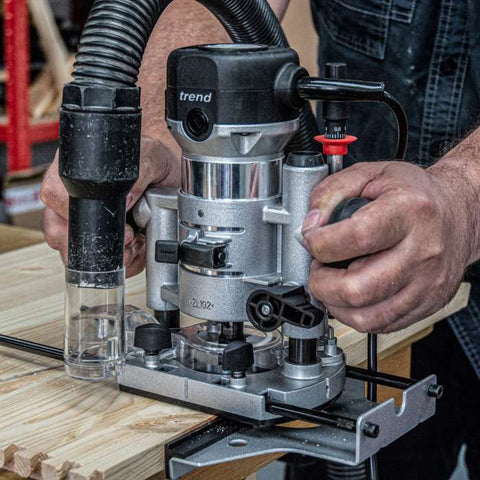

Offset Dust Extraction Spout for an unimpeded view of the workpiece

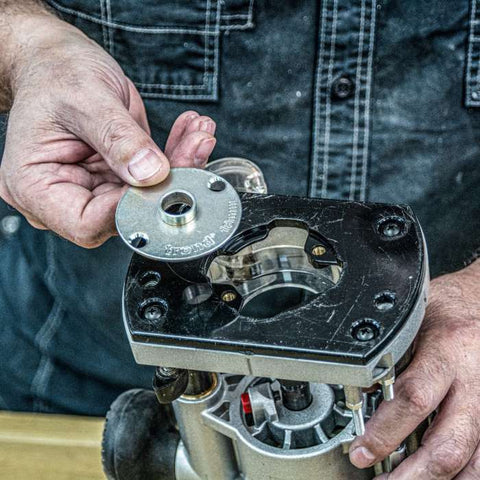

Compatible with Trend Guide Bushes for jig use, templating and inlaying

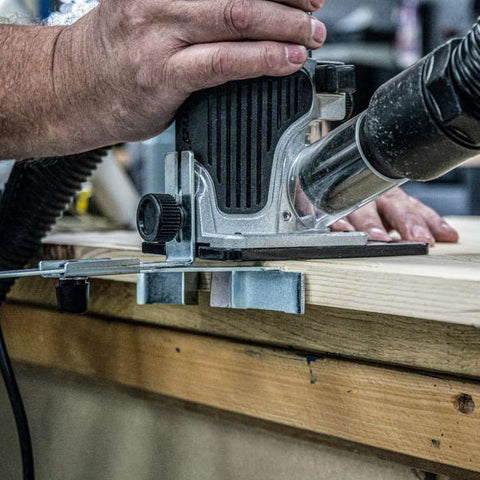

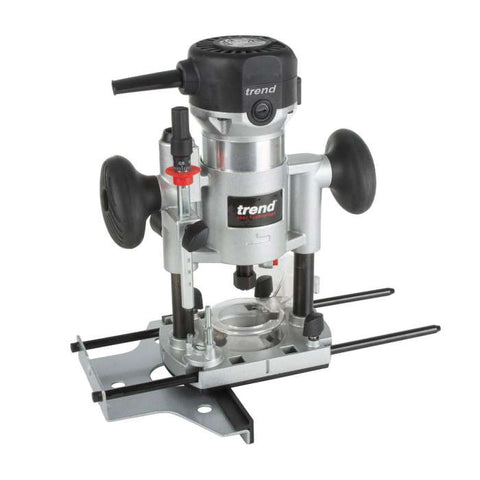

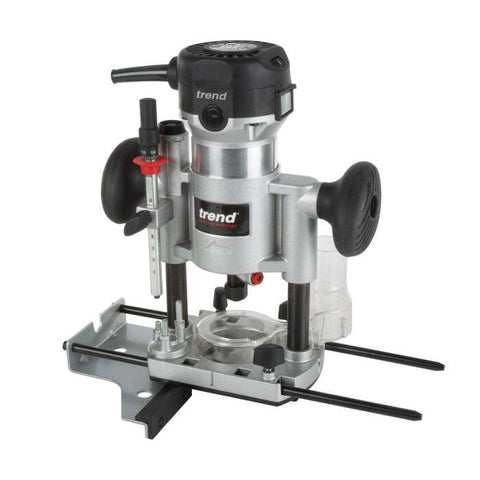

Adjustable Side Fences for templating and edge rebating
Tough Polyester Kit Bag for storage of the router and all accessories

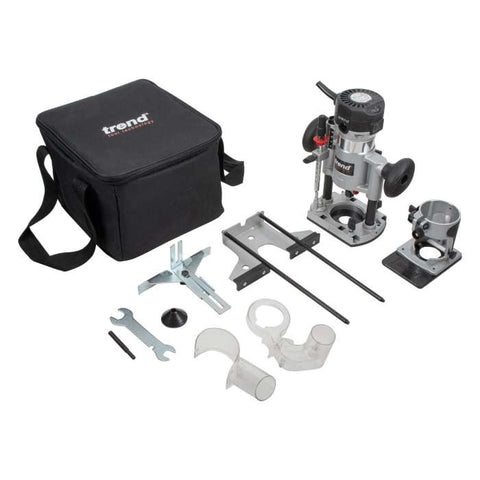

Includes:

1 x Trim Base Dust Spout
1 x Plunge Base Dust Spout

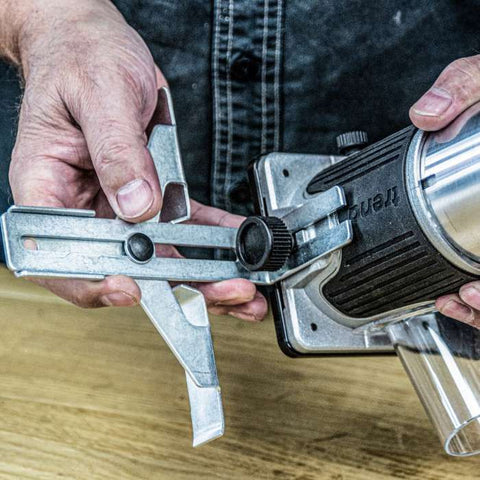

1 x Trim Base Adjustable Guide Fence

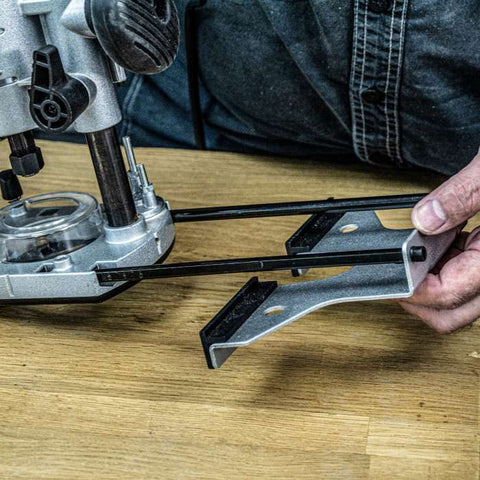

1 x Plunge Base Adjustable Guide Fence
1 x Spanner
1 x Centring Cone
1 x Centring Pin

Product Specification:

Part Number: T1EPS/X
Barcode: 5027654090565
Motor Power: 710W
AC Voltage: 240V
Plug Type: UK 3 pin
Supplied Collet Size: 1/4”
Plunge Stroke (Max): 60mm
Cutter Height Adjustment - Trim Base: 37mm
No Load Speed: 10,000-30,000rpm
Supplied Guide Bush: 16mm (GB160)
Fence Rod Length: 300m
Fence Rod Centres: 84mm
Fence Rod Diameter: 8mm
Base Aperture Diameter: 40mm
Cutter Diameter (Max): 35mm
Dust Spout Internal Diameter: 35mm
Sound Pressure (Lpa): 85dB(A)
Acoustic Pressure (Lwa): 96dB(A)
Hand / Arm Vibration -Trim: 4.6m/s2
Hand / Arm Vibration - Plunge: 4.5m/s2
Power Cable Length: 3m
Switch Type: On/Off Switch
Weight of Base - Plunge: 1.35kg
