Description:

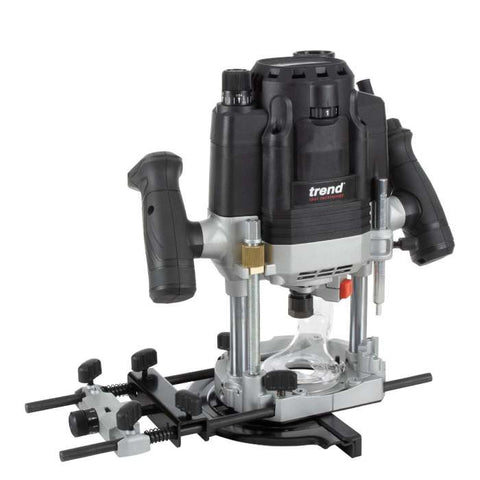

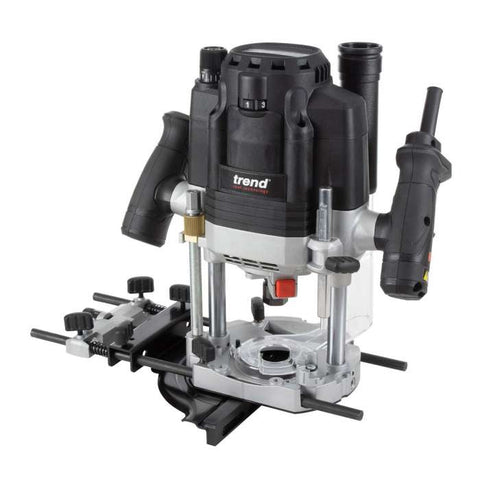

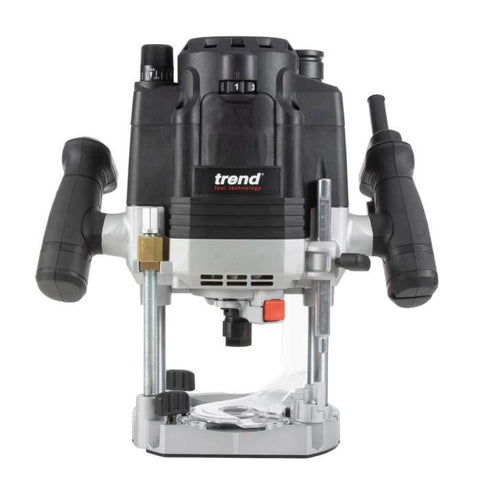

Trend T8EK 1/2in Dual Mode Plunge Router 2200W 240V With Carry Case

The Trend T8EK 240V 2200W 1/2in Dual-Mode Plunge Router is an essential tool for completing deep cutting applications. It is perfectly suited for timber profiling, worktop joints, and lock jigs. It features a Precision Centring System to deliver flawless concentricity between the cutter and guide bush. In addition, its Constant Speed Control automatically adjusts as it monitors the spindle RPM to maintain a cut that is both smooth and consistent. The height can be changed quickly and easily with the height adjuster, while the 11-level Variable Speed Control provides maximum control for a huge variety of applications, cutters and materials. The router has an extra-wide 75mm Base Aperture to allow over-size cutters to be used, and a Vertical Extraction Spout to prevent snagging. The Rotating Turret has seven positions, featuring pre-set plunge depth limits that facilitate repetitive batch and steeped cutting. The fence is fully adjustable with adjustable facings and 0.1mm increments for maximum precision in grooving, moulding and edge rebating. Ideal for trade professionals.

Features:

80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
Twin LED Work lights illuminate the cutting area to improve safety and accuracy in low-light situations.
Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation.

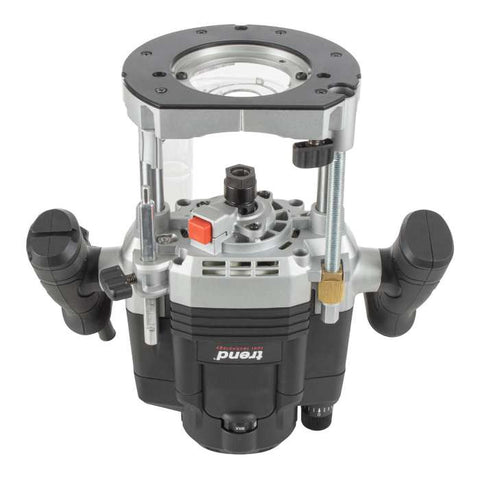

Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.

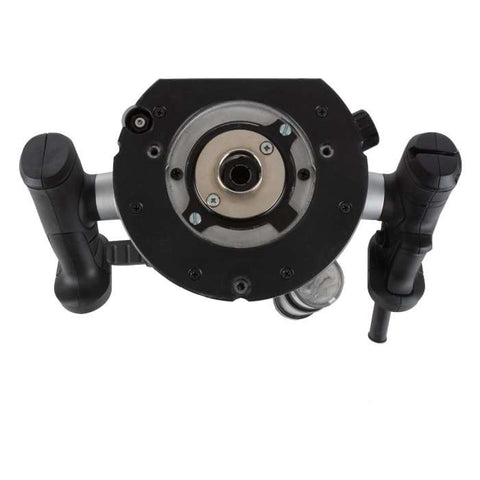

Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.

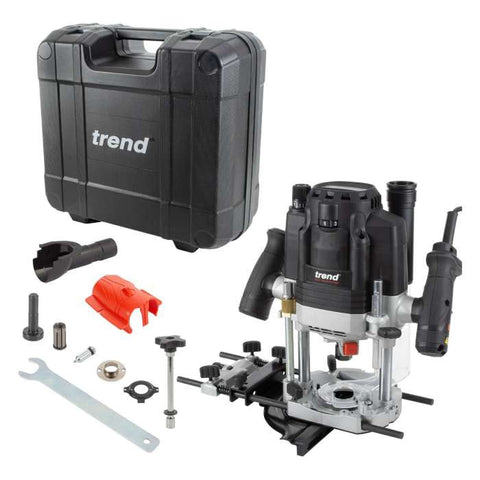

Comes With:

1 x 1/2" Collet
1 x Collet Sleeve
1 x Centering Pin
1 x 30mm Guide Bush
1 x Guide Bush Adaptor
1 x Trammel Pin
1 x 22mm Spanner
1 x Router Table Safety Clip
1 x Under Fence Dust Adaptor
1 x Vertical Dust Adaptor
1 x Cyclone Dust Adaptor
1 x Router Table Height Adjuster

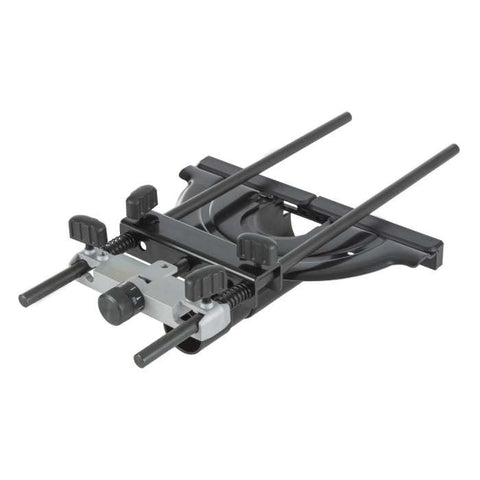

1 x Side Fence
1 x Carry Case

Product Specification:

Part Number: T8EK
Barcode: 5027654064634
AC Voltage: 240V
Motor Power: 2200W
Plug Type: UK 3 pin
Supplied Collet Size: 1/2"
Plunge Stroke (Max): 80mm
No Load Speed: 10,000-26,000 rpm
Supplied Guide Bush: 30mm
Fence Rod Length: 360mm
Fence Rod Centres: 84mm
Fence Rod Diameter: 8mm
Base Aperture Diameter: 75mm
Cutter Diameter (Max): 50mm
Dust Spout Internal Diameter: 35mm
Sound Pressure (Lpa): 94.1 dB(A)
Acoustic Pressure (Lwa): 105.1 dB(A)
Hand/Arm Vibration: <3.8m/s2
Weight (Net): 5.8kg
Power Cable Length: 3m
