Description:

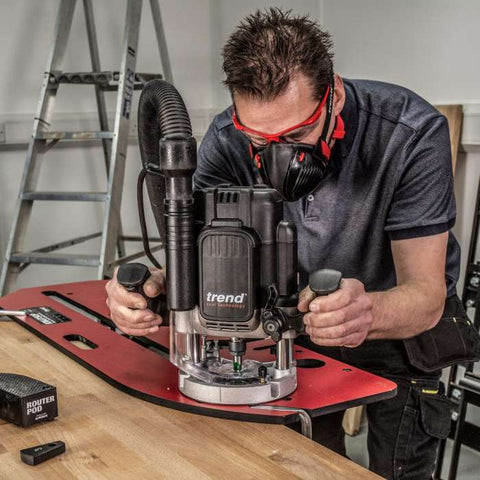

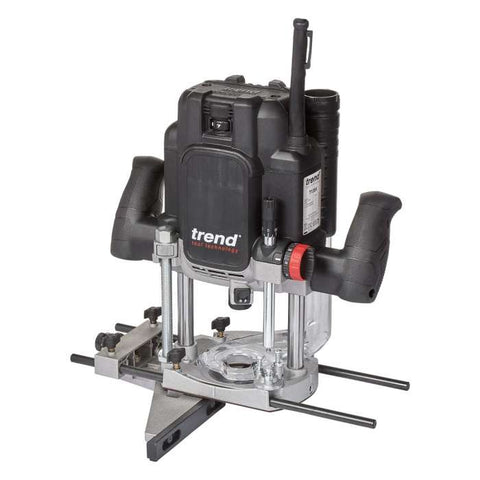

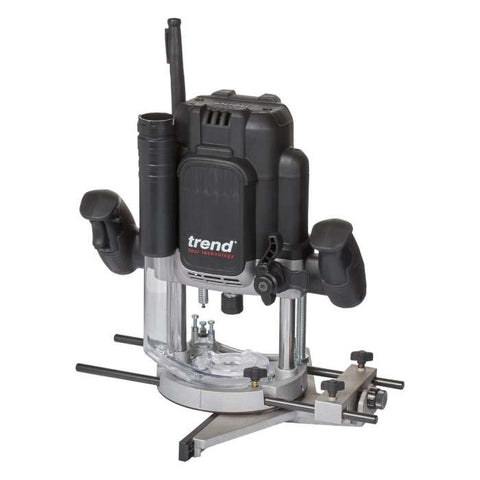

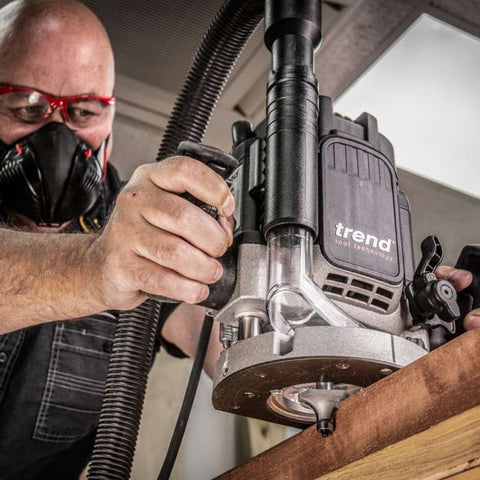

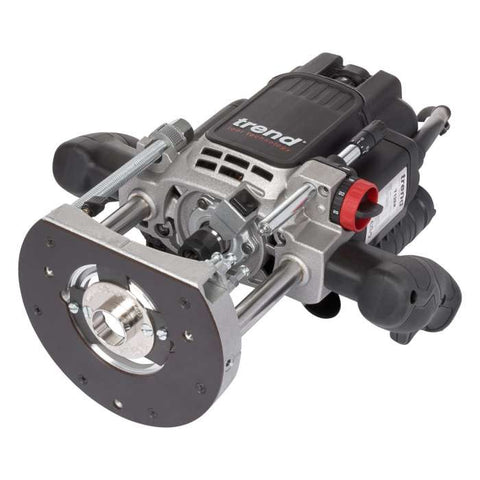

The Trend T12ELK 1/2" Plunge Router 110V/2300W is a high-performance, trade-focused plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. It is ideal for deep cutting applications, work on lock jigs, worktop joints or timber profiling, 80m plunge depth. With 7-level variable speed control, it has great control so that it can work according to preference, making it perfect for professionals who work with various cutters, materials, and applications.

Features:

Trend Base Configuration has a standard fixing pattern of holes for routers to attach to compatible tables, jigs and accessories.
Powerful 2,300W Motor with full wave control and soft-start delivers consistently high power, torque and speed in all demanding situations.
Auto-Lock Plunge Lever allows for efficient repositioning of the plunge position without releasing the handles.
Automatic Power Shut-Off reduces risk of accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost, restored or interrupted.

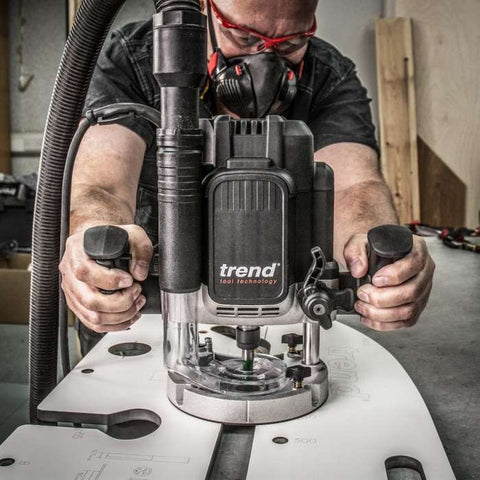

Top-Mount Cyclone Extraction due to dust adapter that’s clears debris to allow 360° visibility and prevent extraction hose from ‘snagging’.
Ergonomic Inclined Handles for added comfort while working to reduce strain and improve control.
Quick-Set Depth Post with rack and pinion 1.0mm indexed increments and zeroing function for fast and easy adjustment.
Automatic LED Work Lights for added visibility in low-light situations.
Anti-scratch Base Plate Low-friction, screw-mounted, replaceable phenolic base plate.

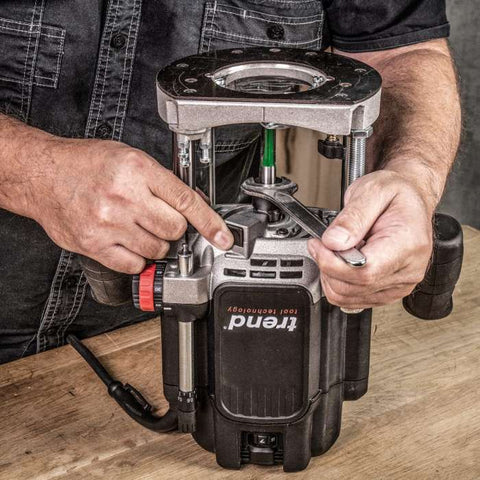

ER Style Collet has a double-locking safety feature to reduce risk of accidental cutter ejection and multi-slit profile for concentric clamping to the cutter shank.

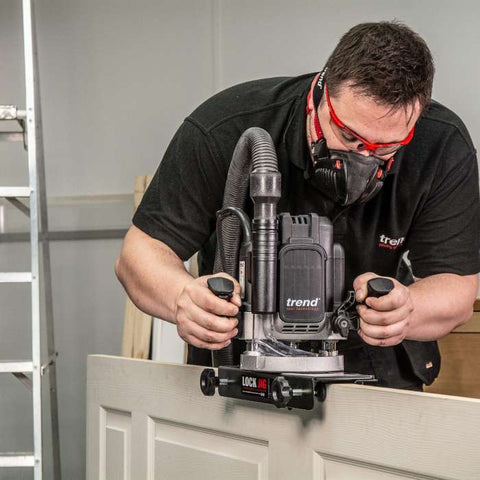

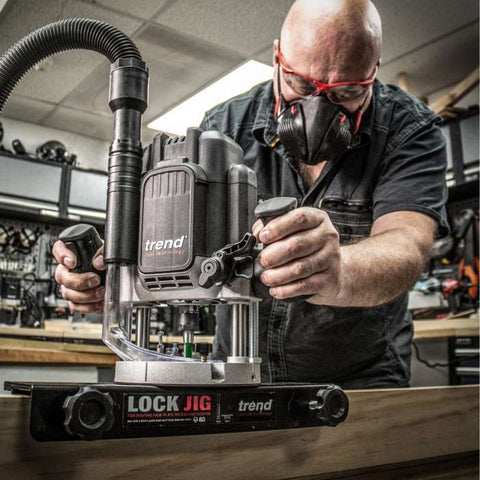

80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.
3-Position Rotating Turret for pre-setting plunge depth limits for fast, repeatable batch and stepped cutting.

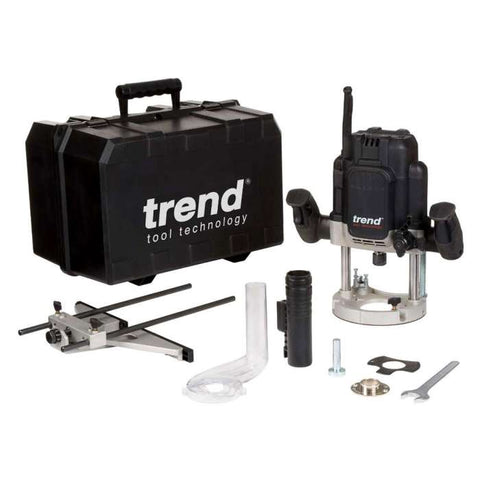

Comes With:

1 x Side fence
1 x Guide bush plate
1 x 30mm Guide bush
1 x 22mm Spanner
1 x Collet
1 x Guide bush pin
1 x Top-mount extraction adapter
1 x Cyclone dust adapter
1 x Blow molded case

Product Specification:

Part No: T12ELK
Barcode: 5027654076286
Standard Collet Diameter: 1/2in
Input Power: 2,300W
No Load Speed: 9,000-22,000/min
Plunge Stroke: 0-80mm
Max. Cutter Diameter: 50mm (handheld)
Guide Bush Ø: 30mm
Dust Spout Size ID: 35mm
Rod Ø x Length: 10 x 360mm
Rod Centres: 100mm
Base Aperture Size: 70mm
Weight: 6.4kg
