Description:

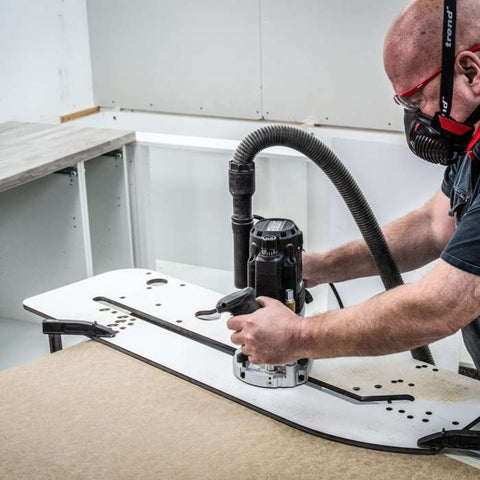

Trend KWJ900/PRO 900mm Professional Kitchen Worktop Jig

The Trend KWJ900 Kitchen Worktop Jig covers fixed lengths for up to 900 mm wide worktops and can cut up to 40 mm thick worktops. It has hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint.

Features:

Tradesman all in one work top jig for up to 900mm worktops
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes
Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps
Fixed lengths for 400mm, 500mm, 550mm, 600mm, 616mm, 635mm, 650mm, 700mm and 900mm wide worktops
Cuts up to 40mm thick worktops with or without anti-drip postformed edge
Three open-ended bolt recesses (dog bone style) for 150mm bolts
Engraved lines for short 65mm bolts and worktop cross-cut

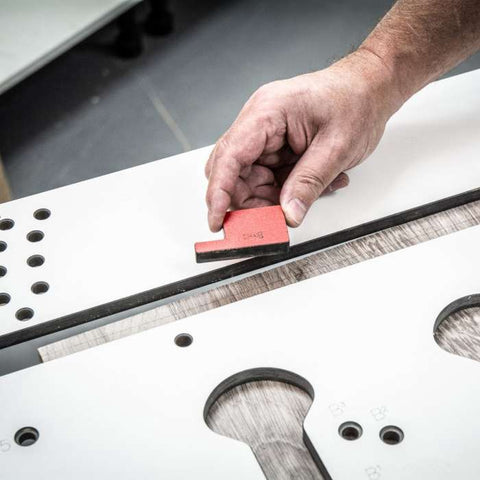

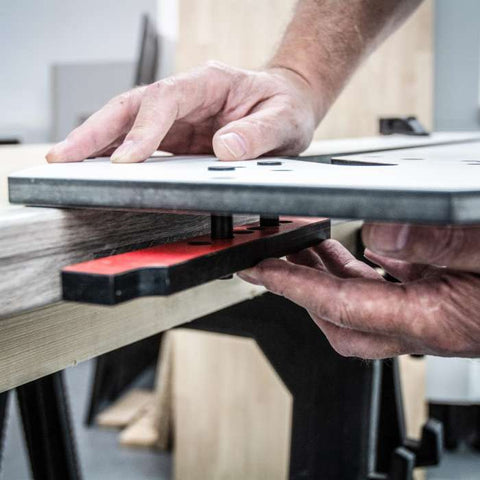

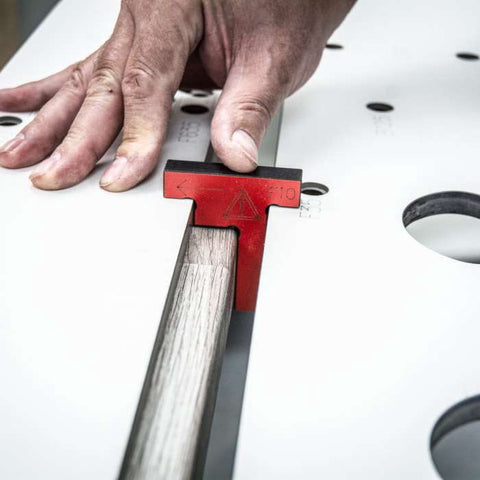

10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up

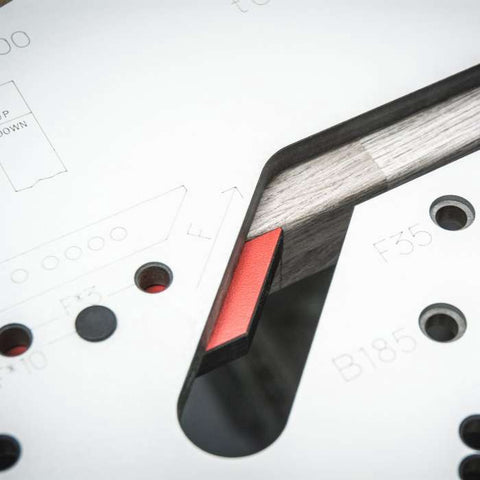

Engraved markings for identification of pin holes
Pins made from ABS plastic for strength
Jig requires:

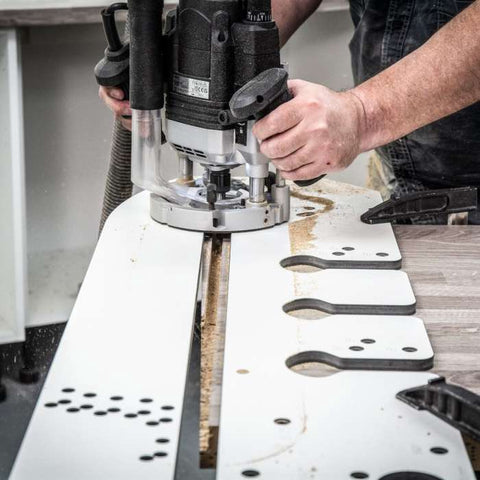

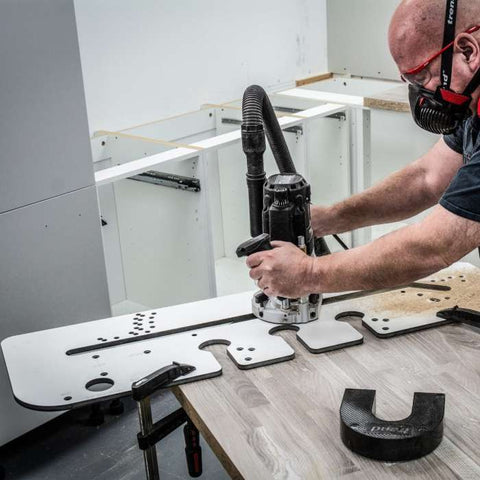

A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts
A template guide bush with 30mm outside diameter ref. GB30
A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length

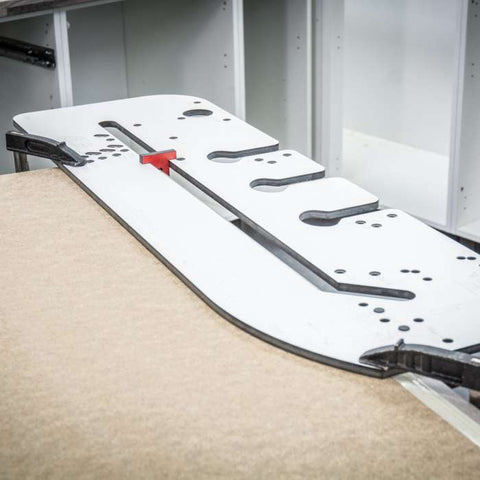

Two clamps

Comes With:

6 x ABS Plastic Pins

Product Specification:

Barcode: 5027654090619
Length: 1185mm
Width: 390mm
Thickness: 12mm
End cut: 45 degrees
Corner Radius: 40mm
Corner Radius: 100mm
Corner Radius: 400mm
Corner Mitre Joint: 45 degrees
Female cut material width loss (inset): 35mm
Bolt Recesses: 3
Bolt Recess Width: 14mm
