Description:

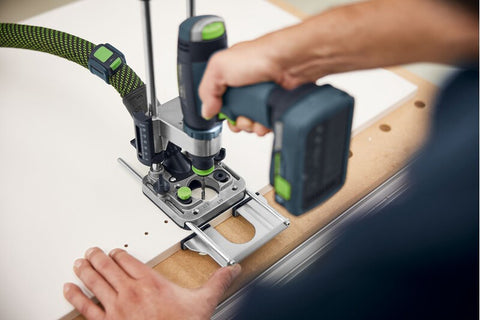

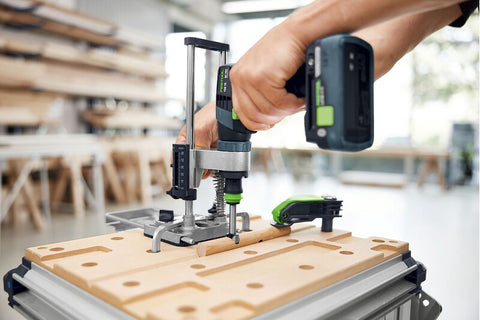

Festool MB 40-Set Mobile Drilling Attachment - 577971

The Festool MB 40-Set Mobile Drilling Attachment is designed for precision and versatility, allowing users to drill exact holes with stability and accuracy. It features an adjustable depth mechanism with clear depth readings in both millimeters and inches, making it easy to set precise drilling depths up to 50 mm. The attachment includes accessories such as a parallel side fence, end face hole stops, and a guide rail adapter, making it ideal for a range of drilling tasks in panel edges and larger workpieces. It also offers a hole series function for the 32-type system and quick tool chuck changes with the CENTROTEC chuck. The integrated chip extraction ensures a cleaner workspace, while the rubberized base plate provides slip-resistant alignment. All of this is neatly organized in a compact Systainer³ for easy storage and portability.

Features:
Precise: Built to be robust and stable – for exact holes.
Exact depth adjustment: With zero position and readable drilling depth up to 50 mm. Display in mm and inches.

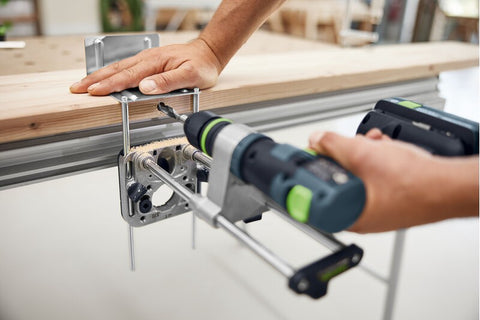

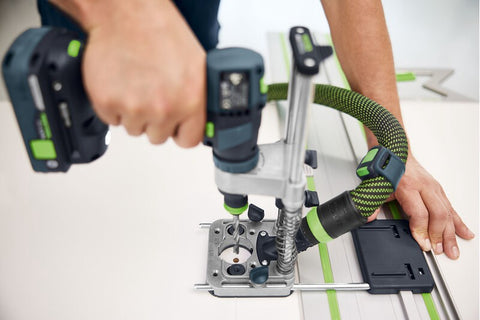

Versatile accessories: With parallel side fence and stop for end face holes, for drilling holes exactly and with repeat accuracy in panel edges, or guide rail adapter for drilling in long and wide workpieces.
Exceptional: With hole series function for holes in the 32-type system.
Compatible: The tool chuck can be fitted quickly and without tools. The CENTROTEC chuck also enables quick insertion and replacement of drilling tools.
Integrated: Chip extraction for extractors from dust class M and hose diameter D 27.
Easy positioning: Markings on the base plate simplify exact alignment on the workpiece.
Sturdy: Rubberised base for precise alignment without slipping.
Clearly organised: Compact and cleverly packed in the Systainer³.
For CXS/TXS 12, CXS/TXS 18, TPC 18/4, TDC 18/4, C 18 and T 18 with FastFix support (not for CXS/TXS)

Main Application:
Creating holes at a 90° angle
Drilling series of holes in system 32
Holes for fittings such as cupboard hinges
Holes for shelf support
Drilling in wood, metal and plastic
Drilling knot holes
Assembly work
Kitchen fitting
Furniture manufacture

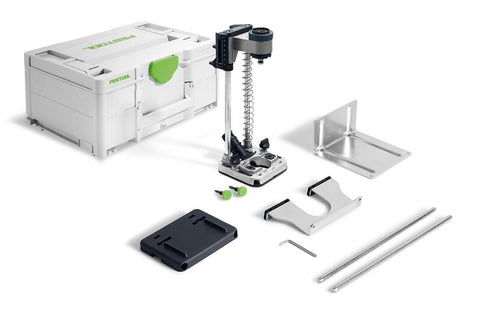

Comes With:
1 x FSA-MB 40 Guide Rail Adapter
1 x Parallel Side Fence incl. stop for end face holes (PA-MB 40)
1 x Hole Series Pin 5 mm
1 x Hole Series Pin 3 mm
1 x TX 15 Key
1 x Systainer SYS3 M 187

Product Specification:
Part Number: 577971
Barcode: 4014549435540
Holder: FastFix
Max. drilling diameter for softwood (Forstner drill bit): 40.00 mm
Max. drilling diameter for softwood (auger bit): 16.00 mm
Base: 110 x 114 mm
Height: 312.00 mm
Setting range of depth stop: 0 - 50 mm
Max. screw diameter (templates/fittings): 4.00 mm
Depth stop, incl. spring: 187.00 mm
Depth stop, without spring: 203.00 mm
Dust extraction connection diameter: 27 mm
Product weight without accessories: 1.40 kg
