Description:

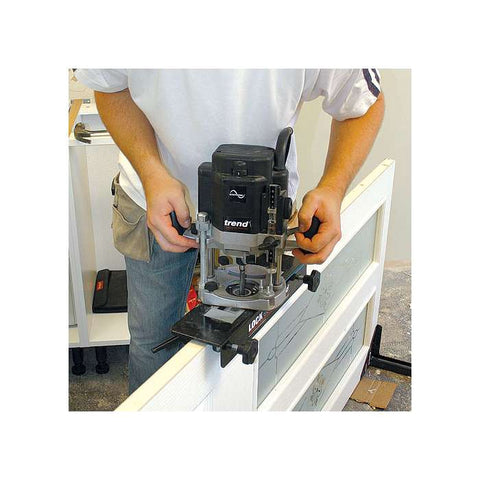

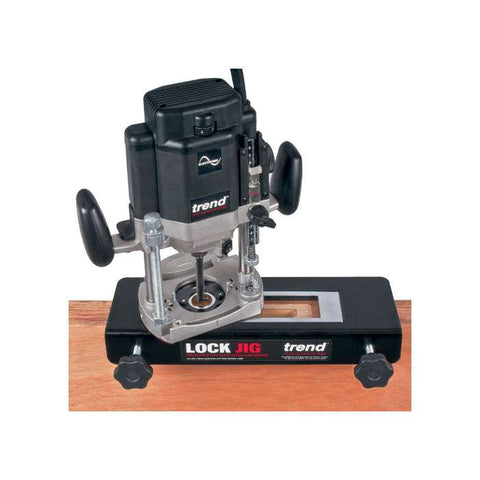

The Trend LOCK/JIG Lock Jig is a contractor jig with interchangeable templates for use with a plunge router to cut the mortise and face-plate recesses for popular door locks.

Features:

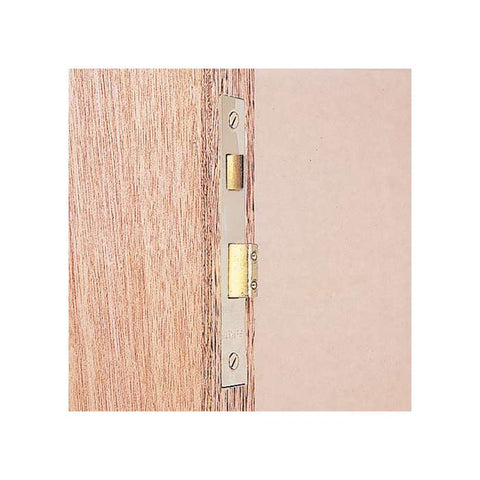

For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate.
Deeper mortises can be achieved with a suitable size of auger bit.
Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
Steel plates & body.
An auger bit and drill is required to complete deep mortises.

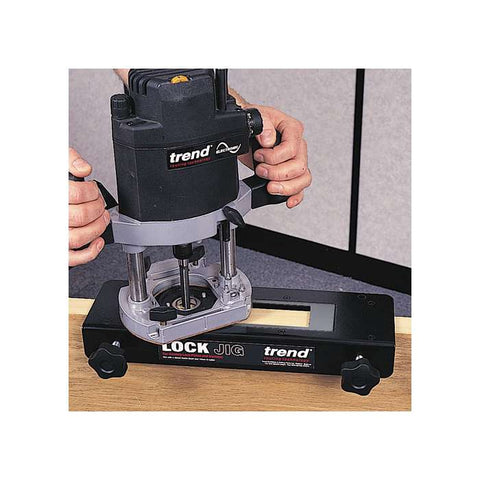

The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

Comes With:

1 x Guide Bush Collar

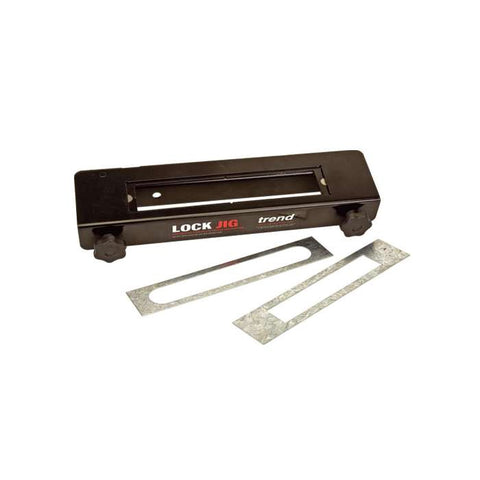

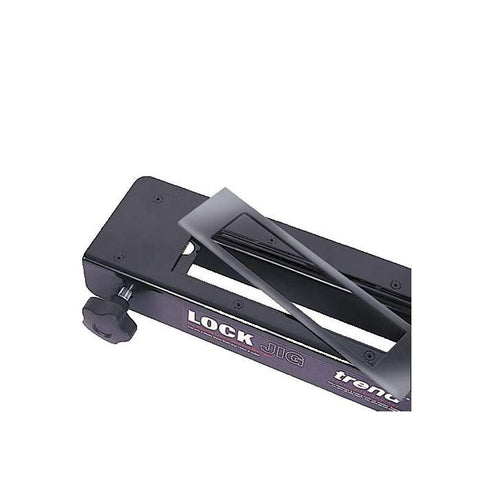

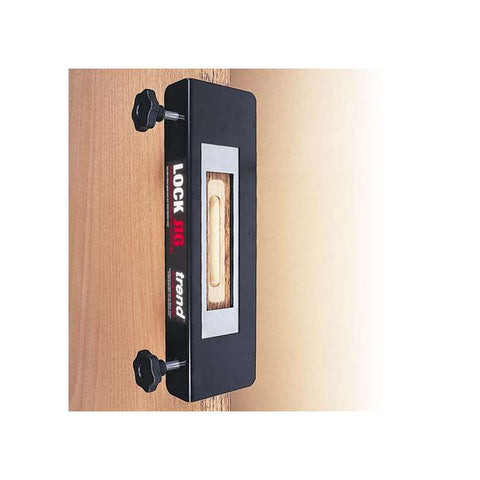

12 x Face Plate Templates
4 x Mortise Templates

Product Specification:

Part no: LOCK/JIG
Barcode: 5027654090596
Door thickness min.: 34 mm
Door thickness max.: 58 mm
Template outer size: 234.3 x 59.8 x1.5mm
Metric (Imperial approx.) (D x OL): Template
22.2x156 mm (7/8"x 6 1/8"): 1
22.5x152.5 mm (7/8"x 6"): 2
25.4x121 mm (1"x 4 3/4"): 3
25.4x127.5 mm (1"x 5"): 4
25.4x133.5 mm (1"x 5 1/4"): 5
25.4x145 mm (1"x 5 3/4"): 6
25.4x153 mm (1"x 6"): 7
25.4x156.5 mm (1"x 6"): 8
25.4x165.5 mm (1"x 6 1/2"): 9
25.4x177 mm (1"x 7"): 10
25x57.5 mm (1"x 2 1/4"): 11 UPPER
26x56.5 mm (1"x 2 1/4"): 11 LOWER
25.6x162mm (1"x 6 3/8"): 12
Mortise Lock Dimensions:
Imperial (Metric) (D x OL): Template
16x72 mm* (5/8" x 2 7/8"): A
16x107 mm* (5/8" x 4 1/4"): B
19x78 mm* (3/4" x 3 1/8"): C
19x109 mm* (3/4" x 4 1/4"): D
