Description:

A universal worktop jig for routing mitre joints in laminated, timber and compact laminate surfaces. Features 3mm, 10mm and 35mm inset options, and innovative front edge alignment technology for scribed, out-of-square and non-standard worktops.

• Front Edge Alignment Technology* accurately positions the jig directly to the start of the mitre joint to accommodate any worktop width.

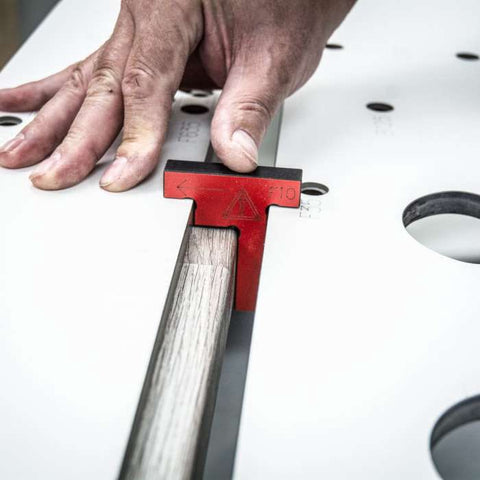

• Narrow Inset T-Gauges create 3mm and 10mm insets quickly and easily. Perfect for square-edged and modern bullnose worktops; narrow insets give a cleaner aesthetic, prevent cutter wear, and improve cordless router runtime.
• Male Cut-Line Positioning Devices* allow the jig to be positioned directly to the male cut line and remove the need for complex length, angle and offset calculations. Ideal for trapped and out-of-square installations.
• Preset Connector Bolt Recesses accommodate all standard worktop bolt sizes, including Zipbolt and Unika ÔSlimlineÕ connection bolts.
• Indexed Backsets for 600, 610, 616, 620, 635, 700, 900 and 950mm worktops for standard 90° installations.
• 400mm Radius for breakfast bar and peninsula trimming.
• R100mm, R40mm and 45¡ Corners for edge finishing.
• 90° Straight Cuts for accurate skimming and trimming.
• 35mm Hinge / 3/4" BSP Recess for surface-mount monobloc tap and concealed hinge installation.
• CNC-Machined Compact Grade HPL provides precision, strength and durability
• 8mm Radius Gauge ensures worktops are suitable for a 10mm narrow inset.
• 8.65mm Marking Gauge helps to perfectly position the jig for peninsula, radius and 45° corner finishing.
• *Patent Pending. See www.trend-uk.com/patent for information.

Dimensions:

• Length=1260 mm
• Width=340 mm
• Thickness=12 mm
• Weight=7.4 kg
• Insets=3/10/35 mm
• Backsets=600/610/616/620/635/700/900/950 mm
• Bolt Recesses=4
• Bolt Recess Centres=175 mm
• Corner Radius=40/100 mm
• Peninsular Radius=400 mm
• Requires:
• Guide Bush=30 mm
• Router Cutter=12.7mm dia. x 50 mm length
• Plunge Router=1/2inch
• F-Clamps=min. 80 mm throat x 2
