Trend KWJ700/PRO 700mm Professional Kitchen Worktop Jig
Regular Price
£149.99

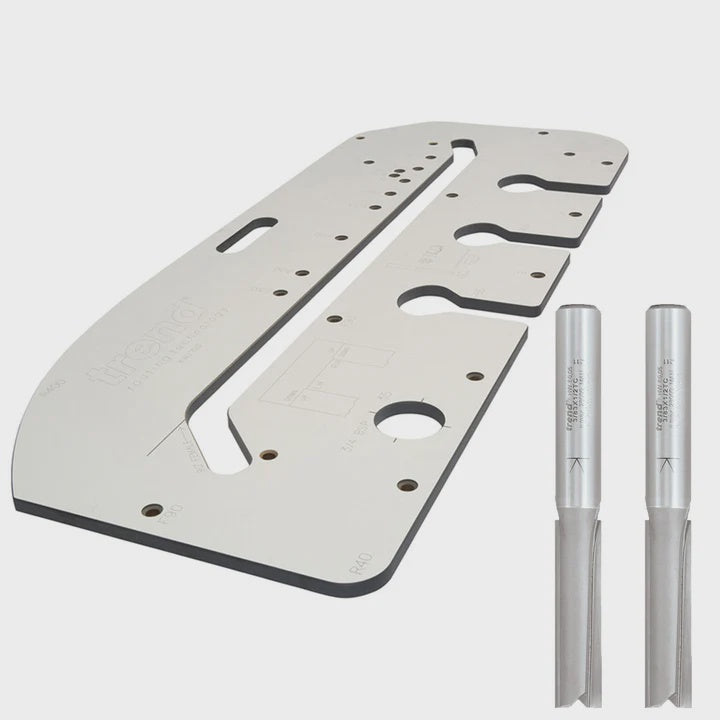

Trend KWJ700/PRO 700mm Professional Multi-Material Worktop Jig
Trend KWJ700/PRO 700mm Professional Worktop Jig is a multi-function jig designed to help you accurately fit kitchen and bathroom worktops. It can be used on a variety of worktop materials, including laminate, solid timber, and composite worktops.
Features:
Multi function jig for accurately fitting kitchen worktops in 10 different widths from 250mm to 700mm wide
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint
Left hand and right hand corners
Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 635mm. 650mm and 700mm wide worktops
Cuts up to 40mm thick worktops with or without anti-drip postformed edge
Three open-ended bolt recesses (dog bone style) for 150mm bolts
Engraved lines for short 65mm bolts and worktop cross-cut
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up
Engraved markings for identification of pin holes
Pins made from ABS plastic for strength
400mm radius peninsular joint
45 degree end cut with slight radius
45 degree trade corner solution for hob units
40 & 100mm radius corner
35mm kitchen door hole and 3/4inch BSP hole for mixer taps
Jig requires:
A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts
A template guide bush with 30mm outside diameter ref. GB30
Two clamps
Product Specification:
Barcode: 5027654090602
Length: 985mm
Width: 390mm
Thickness: 12mm
Weight: 5.4 kg
End Cut: 45 degrees
Corner Radius: 40mm
Corner Radius: 100mm
Corner Radius: 400mm
Corner Mitre Joint: 45 degrees
Female Cut Material Width Loss: 35mm
Bolt recesses: 3
Bolt recess centres: 175 + 175mm
Bolt recess width: 14mm
