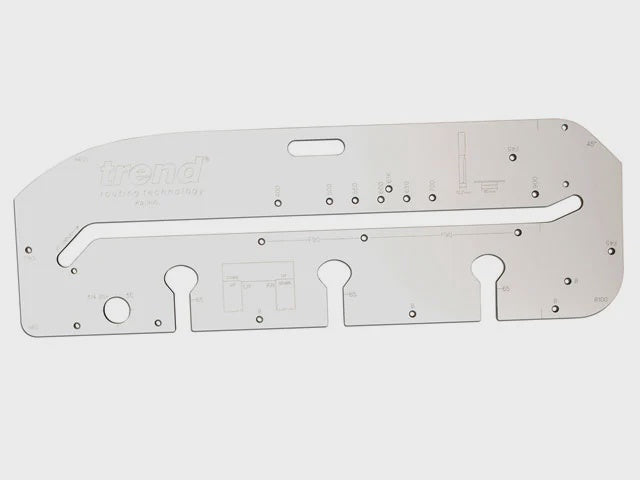

TREND KWJ900 900MM KITCHEN WORKTOP JIG
Regular Price
£145.00
DESCRIPTION
The Trend KWJ900 900mm Kitchen Worktop Jig, a robust, solid laminate tool designed to enhance your kitchen worktop installation process.
Introducing the Trend KWJ900 900mm Kitchen Worktop Jig, a robust, solid laminate tool designed to enhance your kitchen worktop installation process. This 12mm thick jig is capable of cutting both parts of the joint in a mere 15 minutes, including setting up, making it a time-efficient addition to your toolkit.
The Trend KWJ900 is versatile, accommodating fixed lengths for worktops ranging from 400mm to 900mm in width. It can cut worktops up to 40mm thick, with or without an anti-drip post-formed edge, making it suitable for a variety of kitchen designs.
This jig stands out with its unique features, including left and right-hand corners, a 400mm radius peninsular joint, and a 45° end cut with a slight radius. It also offers a 45° trade corner, 100mm and 40mm radius corners, and a 35mm kitchen door hole. The KWJ900 also includes a 3/4inch BSP hole for mixer taps, making it a comprehensive solution for your kitchen installation needs.
The KWJ900 is designed with ease of use in mind, featuring engraved lines for 65mm bolts and worktop cross-cut, six 10mm diameter ABS plastic pins with tapered shoulders for a tight fit, and three-point pin contact for easy setting up. It also includes three open-ended bolt recesses for 150mm bolts and engraved markings for easy identification of pin holes.
The Trend KWJ900 Kitchen Worktop Jig is a tradesman's all-in-one worktop jig for up to 900mm worktops. Its practicality, versatility, and reliability make it an invaluable tool for both professionals and DIY enthusiasts. Trust in the quality and precision of Trend tools and purchase the KWJ900 today.
Tradesman ALL IN ONE work top jig for up to 900mm worktops.
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius
Specification
Length=1185 mm
Width=390 mm
Thickness=12 mm
Weight=7.7kg
End Cut=45 degrees
Corner Radius=40 mm
Corner Radius=100 mm
Corner Radius=400 mm
Corner Mitre Joint=45 degrees
Female cut material width loss (inset)=35 mm
Bolt recesses=3
Bolt recess centres=300 +
Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius
Specification
Length=1185 mm
Width=390 mm
Thickness=12 mm
Weight=7.7kg
End Cut=45 degrees
Corner Radius=40 mm
Corner Radius=100 mm
Corner Radius=400 mm
Corner Mitre Joint=45 degrees
Female cut material width loss (inset)=35 mm
Bolt recesses=3
Bolt recess centres=300 +
