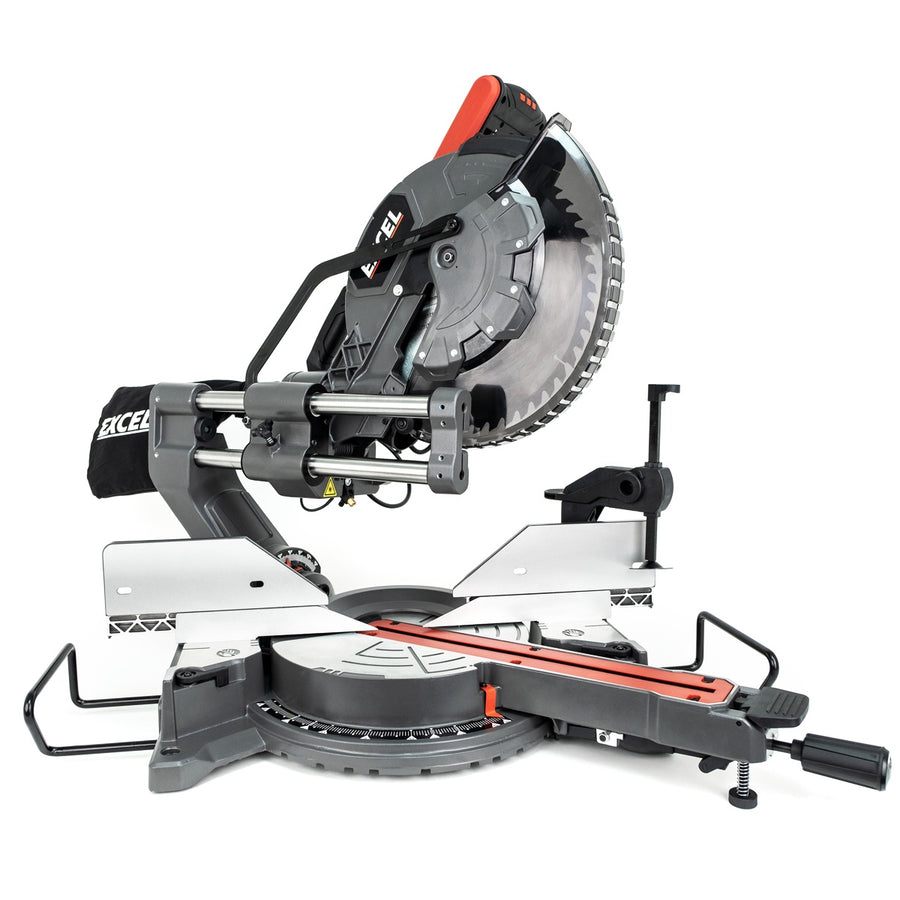

Bevel Lock: The bevel locking handle is used to set the blade at the desired bevel angle. The mitre saw bevel cuts from 0° - 45° to the left.
Spindle Lock: The spindle lock button prevents the blade in the saw from rotating. Depress and hold the spindle lock button while installing, changing or removing the blade.
Mitre Table Lock: The turntable locking handle are used to lock the table at the desired mitre angle. The mitre saw cuts from 0° - 45° both left and right.
Dust Extraction Port: Dust extraction port to reduce build up of saw dust to maintain best efficiency of cutting.
Easy Transportation: Its compact lightweight design allows for easy transportation and storage.
Application: This mitre saw is intended for cutting wood and analogue materials, it is suitable for straight and curved cuts having mitre angles of up to 45°. The saw is not designed for cutting firewood.
Saw blade (fitted)
Multi-tool (6mm hex key/cross screwdriver)
Workpiece clamp
Dust bag
Slide support bars x 2
Instruction manual
Barcode: 0743031864042
Voltage: 220-240V ~ 50Hz
Power: 1800W
No-load Speed: 5000r/min
Blade Size: 305mm x 30mm x 48T
Straight Cut 0° x 0°: 340 x 105mm
Bevel Cut at 45° x 0°: 340 x 60mm (Left & Right)
Mitre Cut at 0° x 45°: 235 x 105mm (Left & Right)
Compound Cut at 45° x 45°: 235 x 60mm
Mitre Table Angles: 0° to 50° (Left & Right)
Sound Pressure Level: LpA 97 dB(A)
Sound Power Level: LwA 108 dB(A)
Uncertainty: KpA 3 dB(A)
Uncertainty: KwA 3 dB(A)
Warranty: 12 months standard warranty
