Description:

Festool KAPEX KS 120 REB 260mm Sliding Compound Mitre Saw 230V GB - 575304

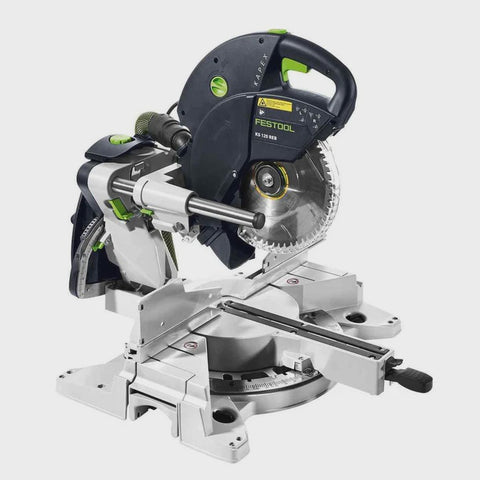

The Festool KAPEX KS 120 REB Sliding Compound Mitre Saw 575304 is a premium precision tool designed for professional woodworking and carpentry. It delivers clean, accurate cuts across a wide range of materials. Its twin-column guide system ensures stable and precise sliding movements. The integrated dual-line laser and fine bevel adjustment make angled cuts effortless and exact. With excellent dust extraction and a compact, ergonomic design, it’s ideal for both workshop and on-site use. It offers durability and reliability for demanding tasks.

Features:
Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation

Main Applications:

Trimming skirting boards and cornices up to 120 mm in height – no calculations
Cutting boards and panels up to 305 x 88 mm
Trimming crown mouldings up to 168 mm in their original wall position
Trimming square timber and beams up to 88 mm thick

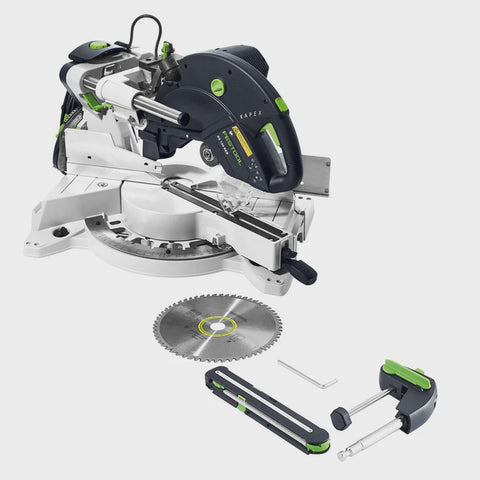

Comes With:
1 x HW 260x2, 5x30 W60 Saw blade
1 x SM-KS Bevel
1 x KL-KS 120 Terminal
1 x WAF 6 hex key

Product Specification:
Part Number: 575304
Barcode: 4014549299234
Voltage: 230V
Power consumption: 1600 W
Idle engine speed: 1400 - 3600 min⁻¹
Saw blade diameter: 260.00 mm
Cutting depth 90°/90°: 305 x 88 mm
Cutting depth at 45°/90°: 215 x 88 mm
Special cutting depth 90°/90°: 60 x 120 mm
Crown moulding diagonal cut 45°/90°: 168.00 mm
Inclination angle: 47/47 °
Mitre angle: 50/60 °
Dimensions (W x D x H): 713 x 500 x 470 mm
Cable length: 3.50 m
Dust extraction connection diameter: 27/36 mm
Special cut. depth 45°/90° (left): 40 x 120 mm
Special cutting depth 45°/90° (right): 20 x 120 mm
Cutting depth 50°/90° (left): 196 x 88 mm
Cutting depth 60°/90° (right): 152 x 88 mm
Cutting depth 45°/45° (left): 215 x 55 mm
Cutting depth 45°/45° (right): 215 x 35 mm
Crown moulding diagonal cut at 90°/90°: 168.00 mm
Work height: 900.00 mm
Product weight without accessories: 24.30 kg
Transport weight incl. accessories: 27.85 kg
Drive type: Mains
Noise and Vibration:
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Standards series EN: 61029-2-9
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 101.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 88.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
